Components And Components Location: Components

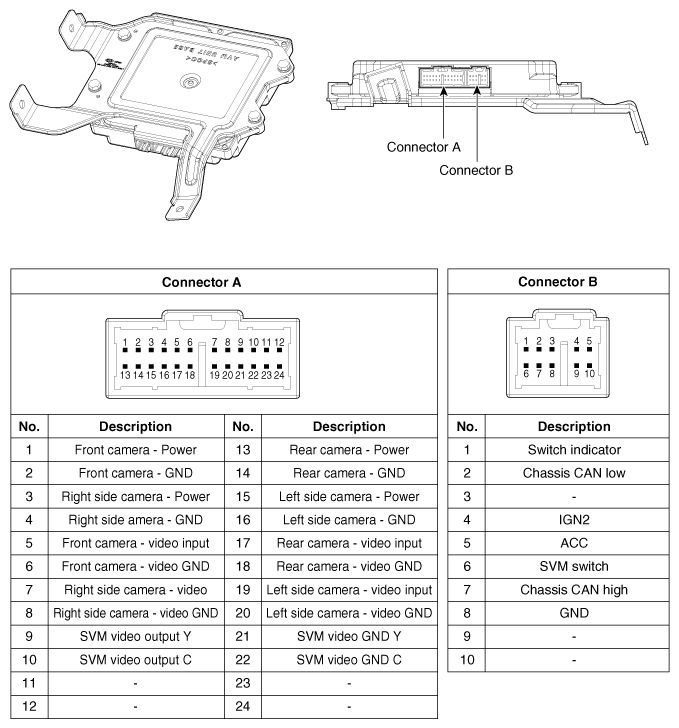

Fig 1: Locating SVM Unit Connector & Terminals Description Chart

G12177000

Courtesy of KIA MOTORS AMERICA, INC.
