Radar Sensor Alignment (SCC/AEB)

Ignition "ON".
Select SCC system.
Perform "Vehicle S/W Management" with KDS/GDS.
Select the "Radar Sensor Alignment (SCC/AEB)" and set the proper option.
Check for DTCs in the system.

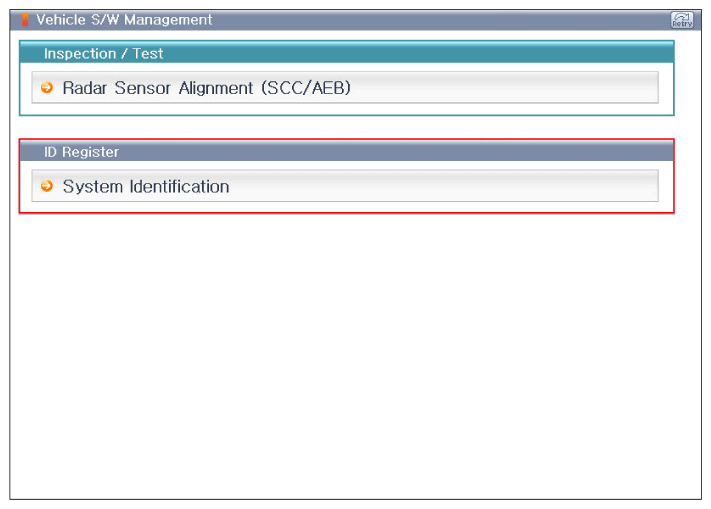

Fig 1: Scantool Display - Radar Sensor Alignment (SCC/AEB) Procedure On Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

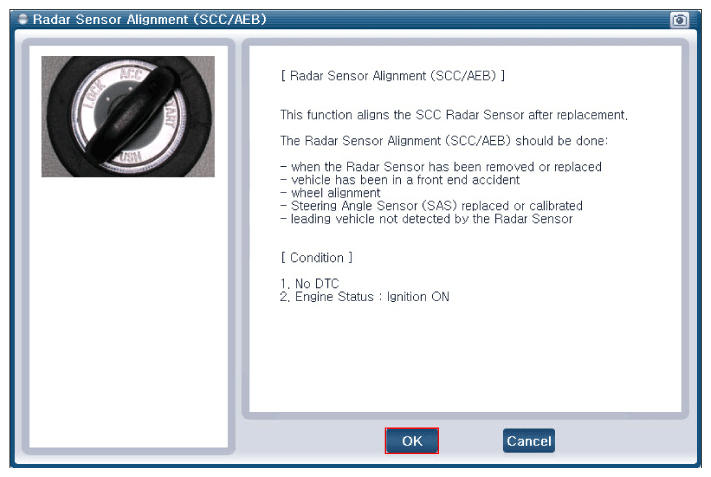

Fig 2: Scantool Display - Radar Sensor Alignment With Condition (SCC/AEB)
Courtesy of KIA MOTORS AMERICA, INC.

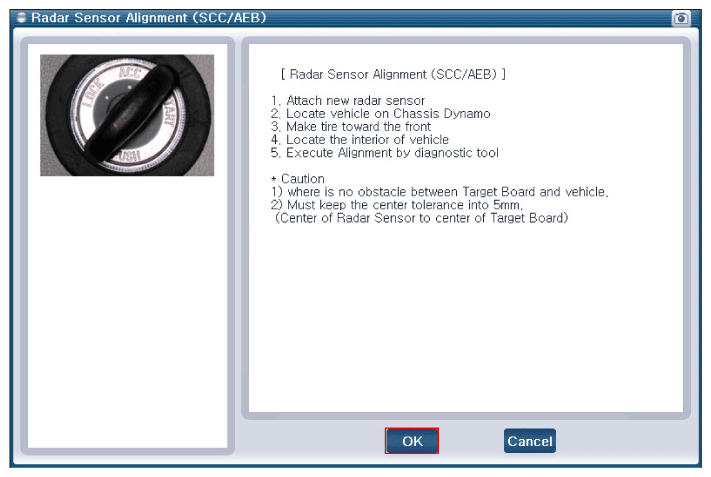

Fig 3: Scantool Display - Radar Sensor Alignment With Caution (SCC/AEB)
Courtesy of KIA MOTORS AMERICA, INC.

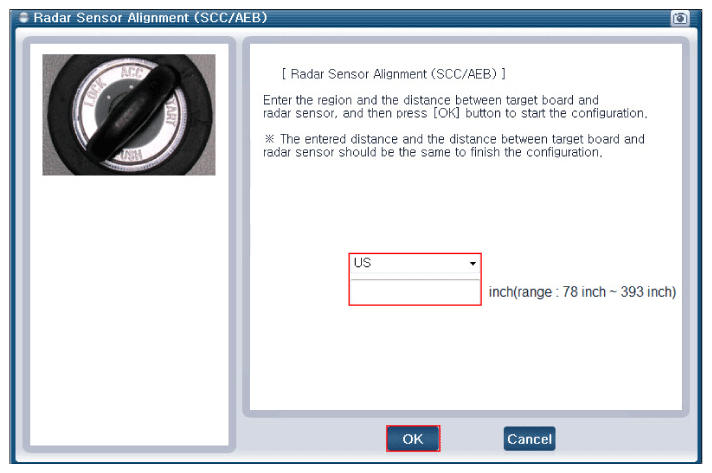

Fig 4: Scantool Display - Radar Sensor Alignment (SCC/AEB)
Courtesy of KIA MOTORS AMERICA, INC.

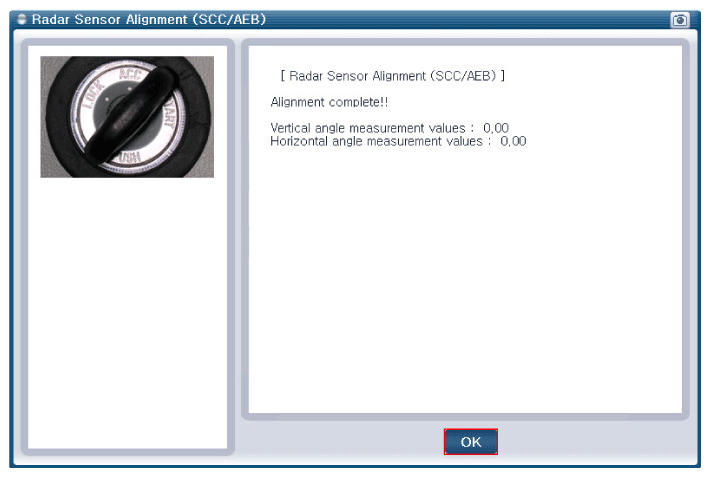

Fig 5: Scantool Display - Radar Sensor Alignment Completed (SCC/AEB)
Courtesy of KIA MOTORS AMERICA, INC.
