Inspection Of The Smart Tailgate Using GDS
- Check up through GDS analyzing device, the failure code, monitoring on entered value, and by forcefully operating actuator and self diagnosis, failed area can be detected promptly.
- Select the vehicle and menu to analyze the Smart Tailgate module.
- Select the "STM" to check the DTC of the power trunk module.

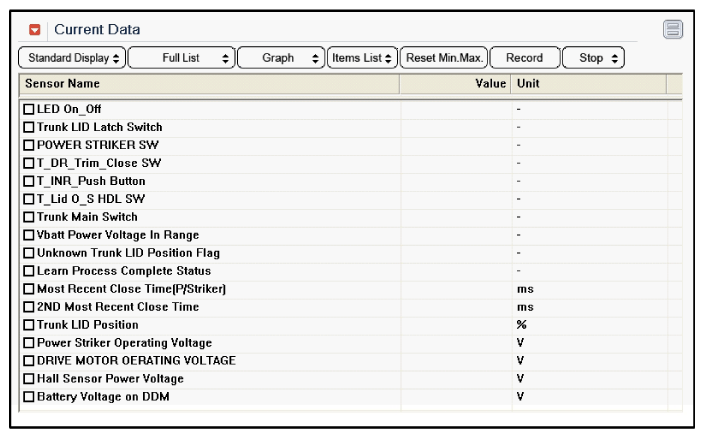

- Select the "Service Data" to see the current status in accordance with the input/output value. Offer status of the each switch and sensor.
Courtesy of KIA MOTORS AMERICA, INC.
