Signal Waveform & Data

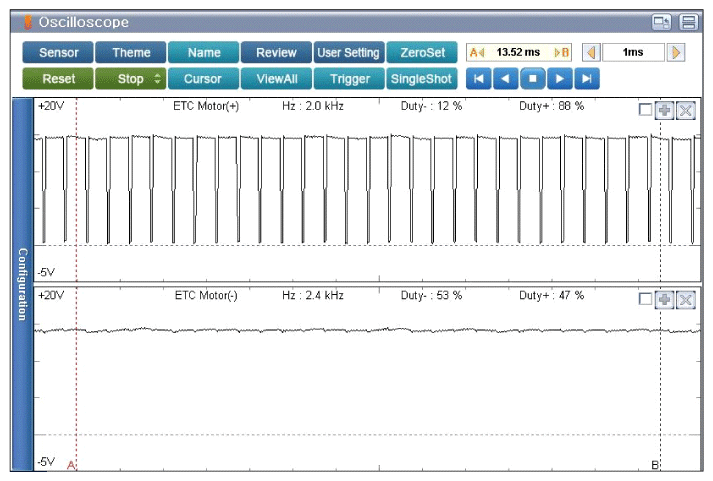

Fig 1: Scantool Display - Signal Waveform & Data (Engine Idle After Warm Up)
G12274125Courtesy of KIA MOTORS AMERICA, INC.

ETC Motor(+) → Duty(+) Approx. 88%

Duty(-) Approx. 12%

ETC Motor(-) → Not in Control
