Signal Waveform & Data

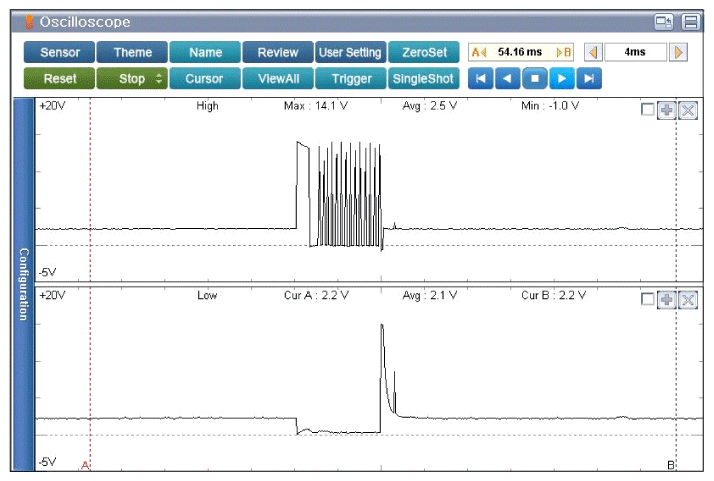

Fig 1: Screen Display - Normal Waveforms Of FPR At Engine Idle
G12276476Courtesy of KIA MOTORS AMERICA, INC.

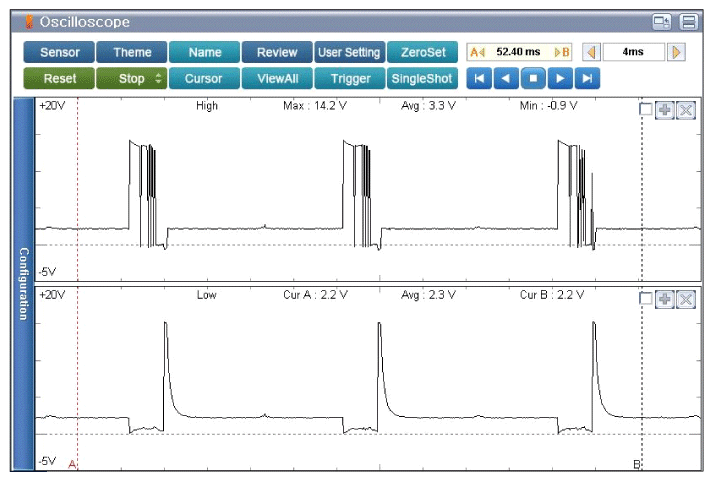

Fig 2: Screen Display - Normal Waveforms Of FPR At Approx 2000RPM
G12276477Courtesy of KIA MOTORS AMERICA, INC.
