Home >> Kia >> 2017 >> Sedona L >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 3) >> DTC P0077: Intake Valve Control Solenoid Circuit-High (Bank 1) >> Specification >> Signal Waveform & Data

Signal Waveform & Data

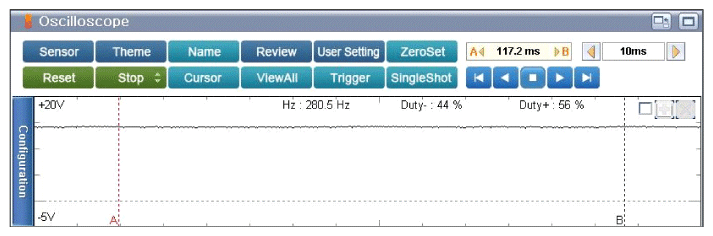

Fig 1: Screen Display - Normal Waveforms Of OCV At Engine Idle
G12276405Courtesy of KIA MOTORS AMERICA, INC.

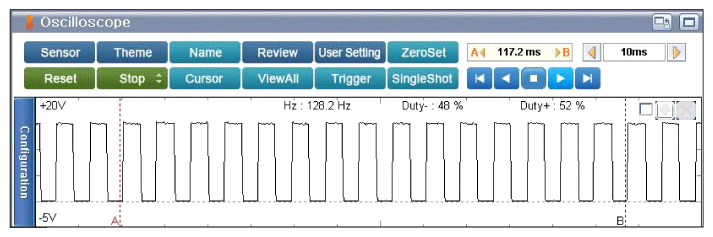

Fig 2: Screen Display - Normal Waveforms Of OCV At Approx 2000RPM
G12276406Courtesy of KIA MOTORS AMERICA, INC.
