Tolerance Compensation Environments

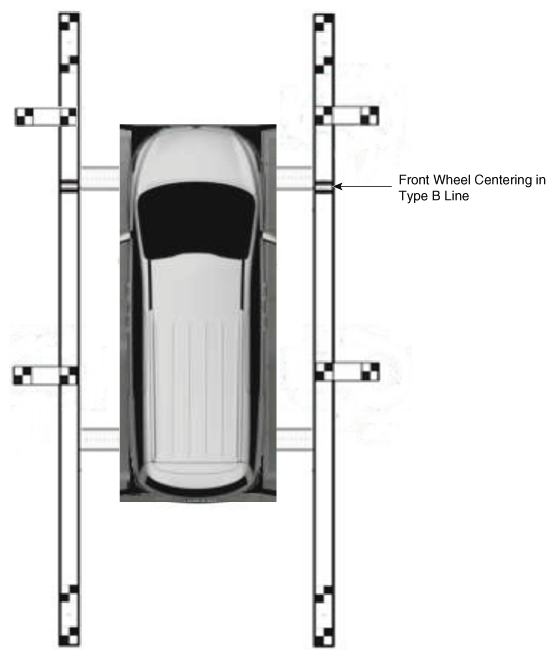

Fig 1: Tolerance Compensation Environments - Front Wheels Centered On Line

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: There are two types of tolerance compensations: [manual tolerance compensation] and [automatic tolerance compensation].

The service center with the SVM exclusive workshop performs [automatic tolerance compensation].

The maintenance environment without the SVM exclusive workshop performs [manual tolerance compensation].
