Components And Components Location: Components

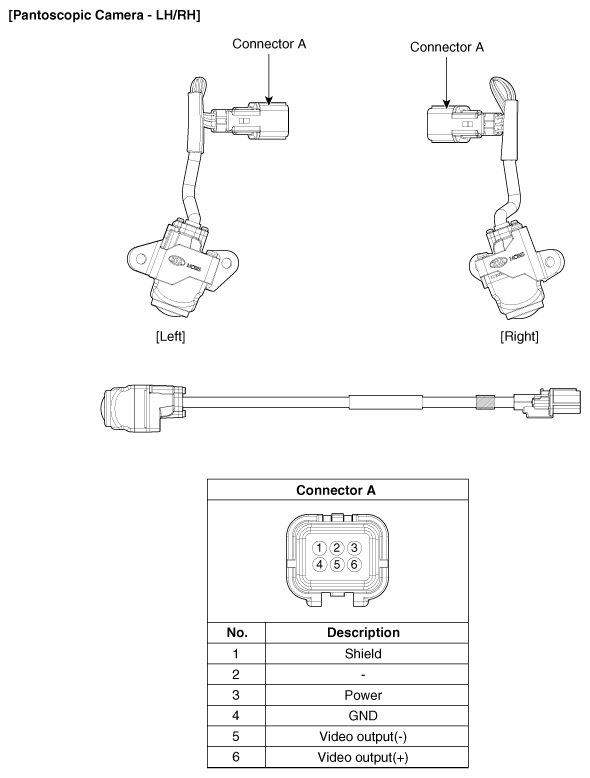

Fig 1: Pantoscopic Camera Terminals And Connector End View - LH/RH

Courtesy of KIA MOTORS AMERICA, INC.

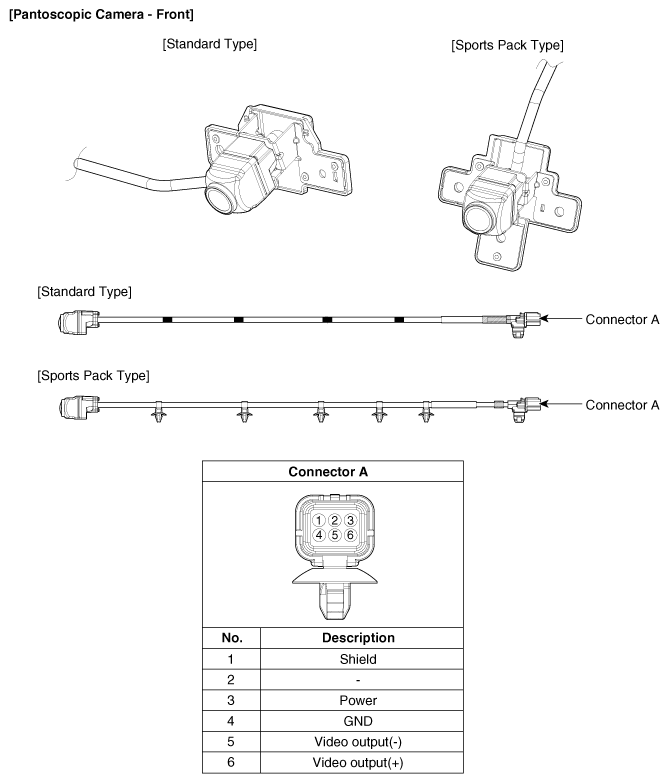

Fig 2: Pantoscopic Camera Terminals And Connector End View - Front

Courtesy of KIA MOTORS AMERICA, INC.

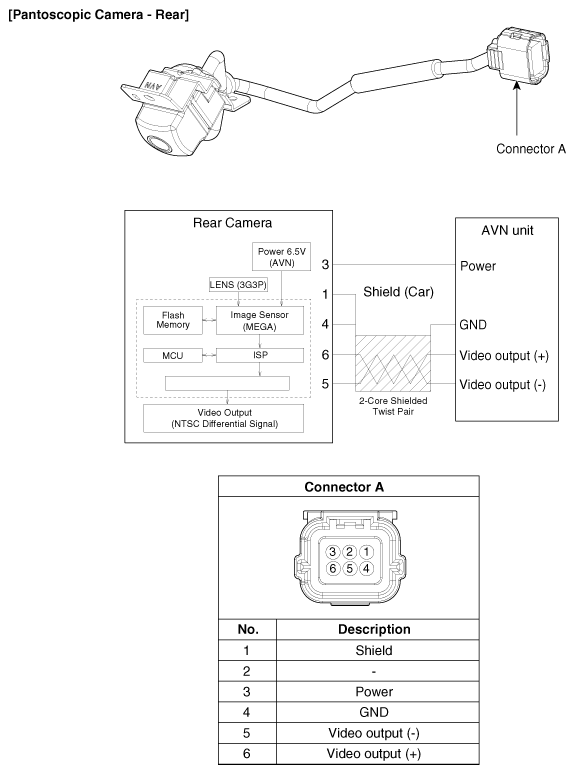

Fig 3: Pantoscopic Camera Terminals And Connector End View - Rear

Courtesy of KIA MOTORS AMERICA, INC.
