BSD Radar Calibration

NOTE: * Check before Correction
  1. Refer to "BLIND SPOT DETECTION RADAR CALIBRATION Check the vehicle condition and whether the BSD unit or bracket is deformed (mounting angle, twisted vehicle body, etc.).
  2. Refer to "CORRECTING THE BSD ANGLE After replacing the BSD unit or bracket, with the bumper removed, use the BSD unit correction tool set to perform angle correction.
  3. After checking and correcting the BSD unit angle, perform the BSD radar correction procedure.
  1. Connect GDS to Data Link Connector(DLC).
  2. Ignition "ON".
  3. Select "Vehicle S/W Management" with GDS.
  4. Select "BSD Radar Calibration" under Vehicle S/W Management.
  5. Refer to following procedure to perform Vehicle S/W Management.

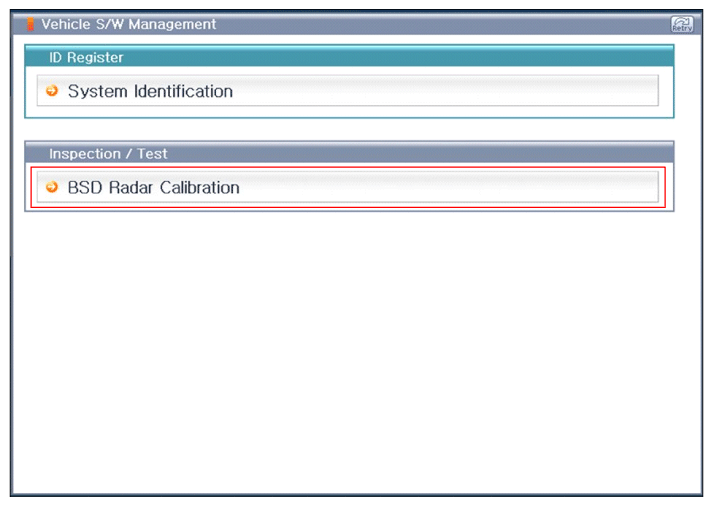

Fig 1: Screen Display - BSD Radar Calibration 1
G12263894Courtesy of KIA MOTORS AMERICA, INC.

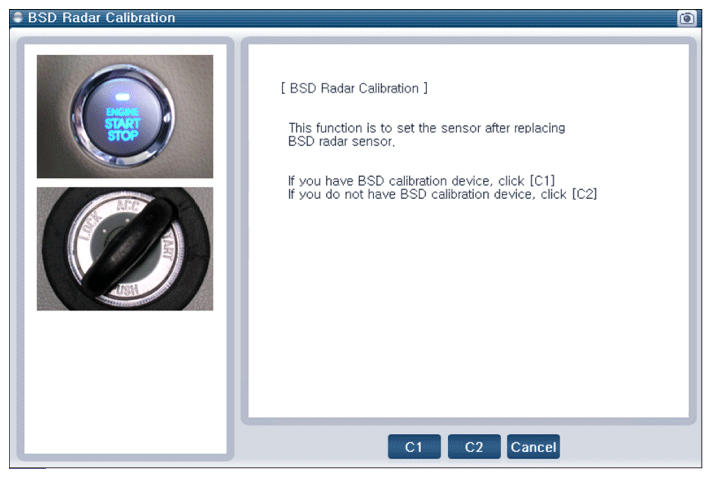

Fig 2: Screen Display - BSD Radar Calibration 2
G12263895Courtesy of KIA MOTORS AMERICA, INC.

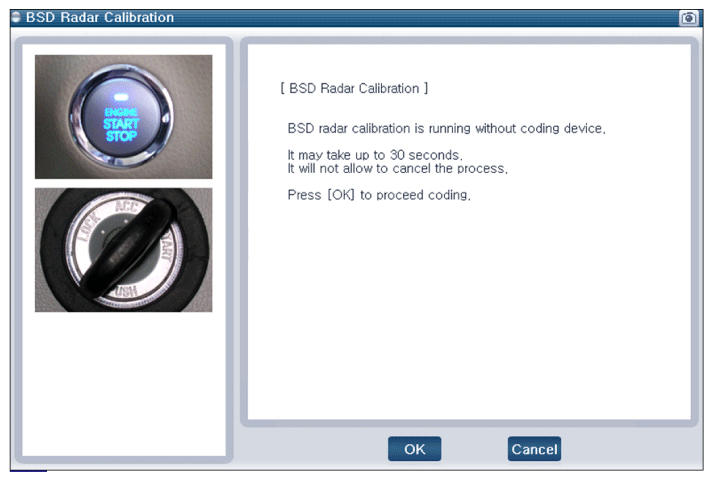

Fig 3: Screen Display - BSD Radar Calibration 3
G12263896Courtesy of KIA MOTORS AMERICA, INC.

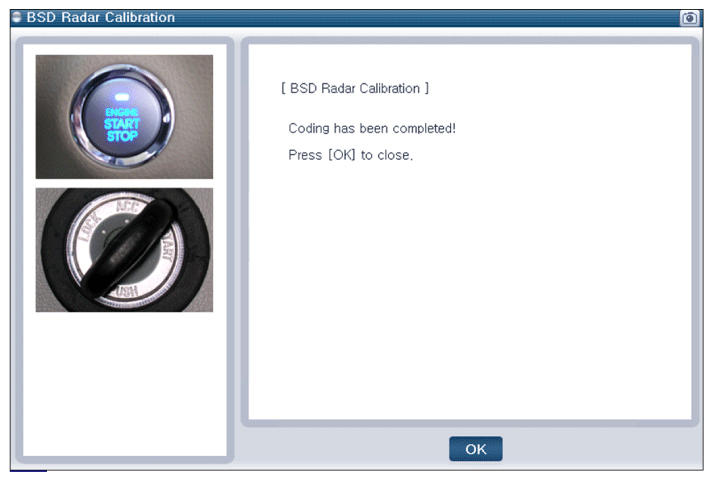

Fig 4: Screen Display - BSD Radar Calibration 4
G12263897Courtesy of KIA MOTORS AMERICA, INC.
