BSD Radar Calibration

NOTE: * Check before Correction
  1. Refer to "BLIND SPOT DETECTION RADAR CALIBRATION Check the vehicle condition and whether the BSD unit or bracket is deformed (mounting angle, twisted vehicle body, etc.).
  2. Refer to "CORRECTING THE BSD ANGLE After replacing the BSD unit or bracket, with the bumper removed, use the BSD unit correction tool set to perform angle correction.
  3. After checking and correcting the BSD unit angle, perform the BSD radar correction procedure.
  1. Connect GDS to Data Link Connector(DLC).
  2. Ignition "ON".
  3. Select "Vehicle S/W Management" with GDS.
  4. Select "BSD Radar Calibration" under Vehicle S/W Management.
  5. Refer to following procedure to perform Vehicle S/W Management.

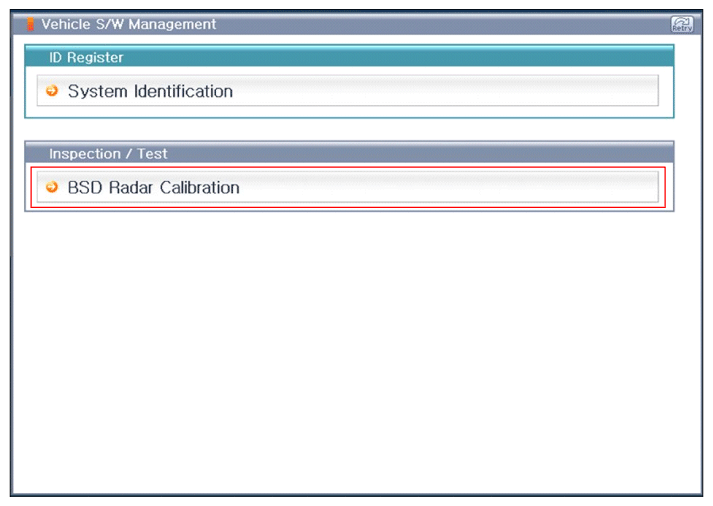

Fig 1: Screen Display - BSD Radar Calibration 1
G12263888Courtesy of KIA MOTORS AMERICA, INC.

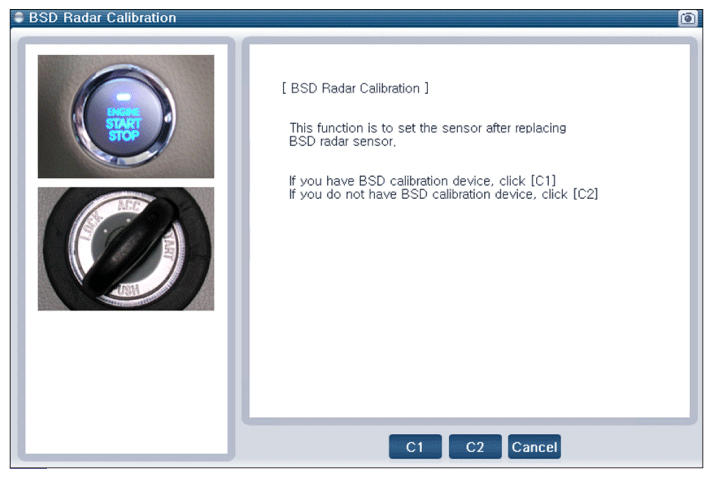

Fig 2: Screen Display - BSD Radar Calibration 2
G12263889Courtesy of KIA MOTORS AMERICA, INC.

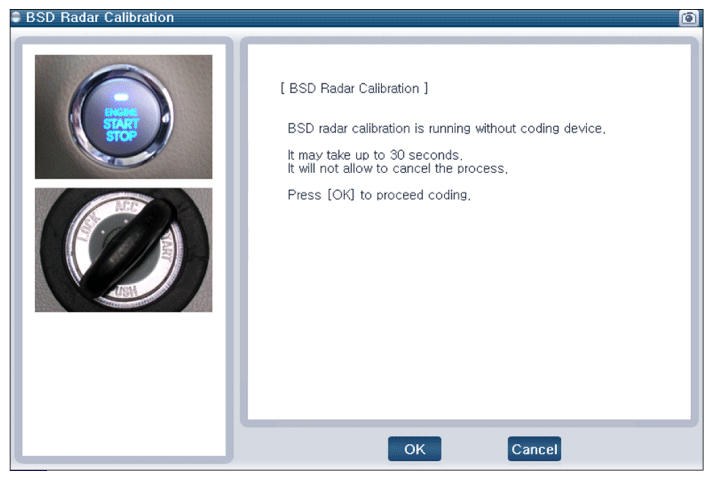

Fig 3: Screen Display - BSD Radar Calibration 3
G12263890Courtesy of KIA MOTORS AMERICA, INC.

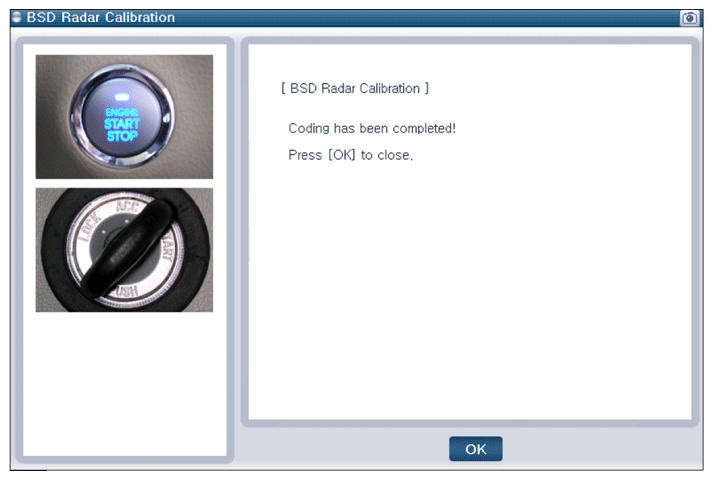

Fig 4: Screen Display - BSD Radar Calibration 4
G12263891Courtesy of KIA MOTORS AMERICA, INC.
