Monitor DTC Status

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.

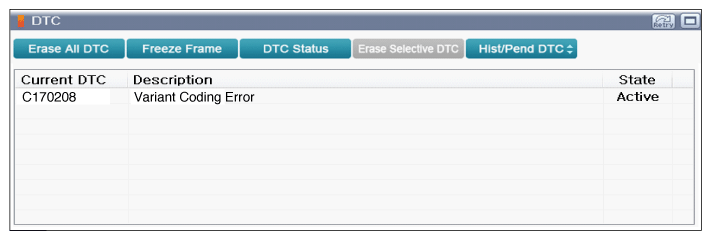

Fig 1: Scantool Display - Diagnostic Trouble Code
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Perform the "VARIANT CODING " and "RADAR SENSOR ALIGNMENT (SCC/AEB) " at the "Vehicle S/W Management" mode by using KDS/GDS.
- Repair or replace as necessary and then go to "Verification Of REPAIR " procedure.
  * Go to "SYSTEM INSPECTION " procedure.
NO
- This fault was repaired and SCC Module memory was not cleared. Go to "Verification Of REPAIR " procedure.
