Main Relay Actuation Test

  1. Connect GDS to Data Link Connector(DLC).
  2. IG KEY "ON" & ENG "OFF".
  3. Perform "Actuation Test" for "Main Relay".

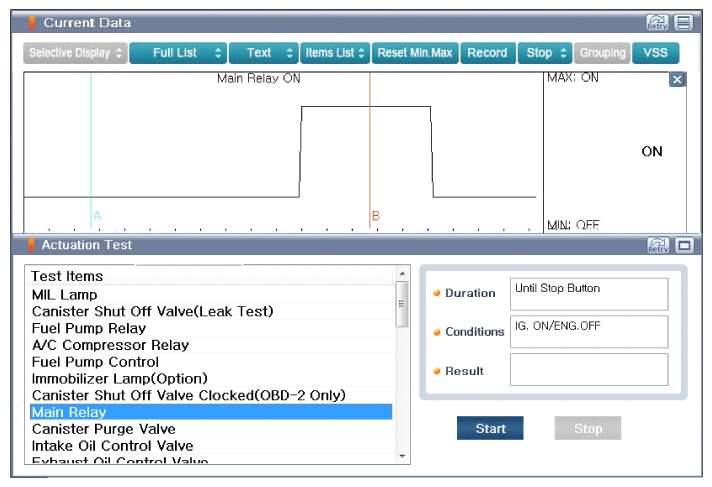

    Fig 1: Scantool Display - Main Relay Actuation Test
    G12274261Courtesy of KIA MOTORS AMERICA, INC.
