Etc Test

  1. Connect GDS to Data Link Cable (DLC).
  2. IG "ON" & ENG "OFF".
  3. Select the "Vehicle S/W Management" about related DTC with GDS.

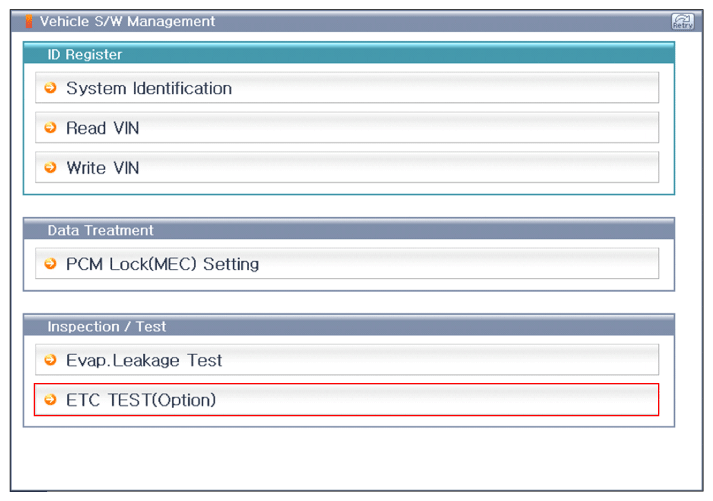

    Fig 1: Scantool Display - Vehicle S/W Management (ETC Test)
    G12274130Courtesy of KIA MOTORS AMERICA, INC.

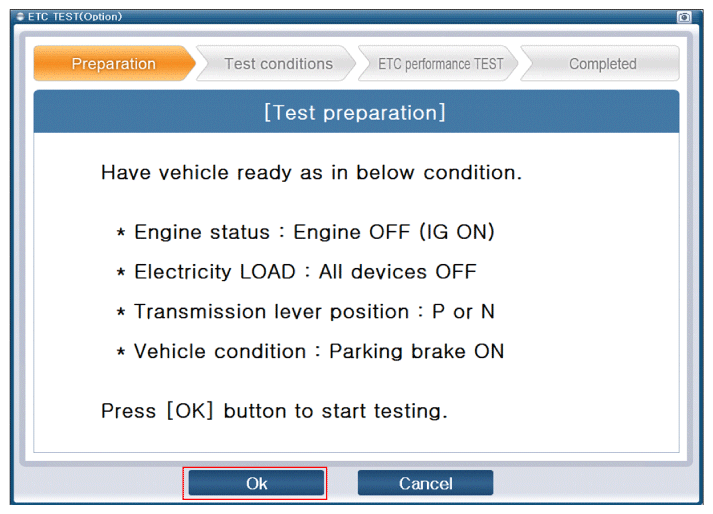

    Fig 2: Scantool Display - ETC Test Preparation
    G12274131Courtesy of KIA MOTORS AMERICA, INC.

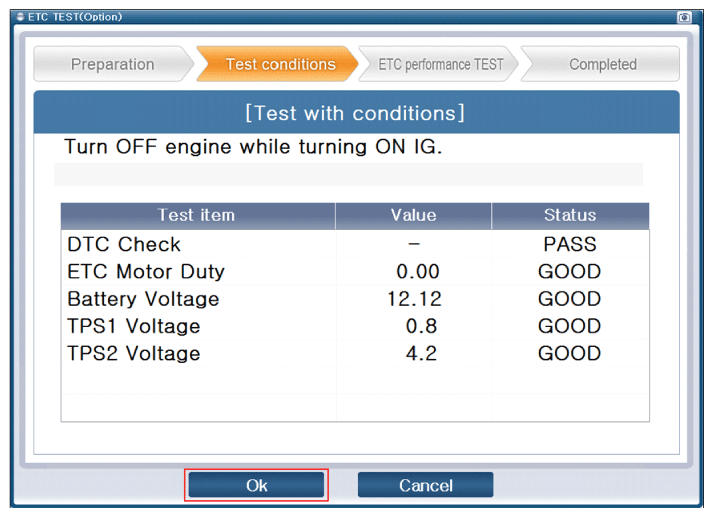

    Fig 3: Scantool Display - ETC Test With Condition
    G12274132Courtesy of KIA MOTORS AMERICA, INC.

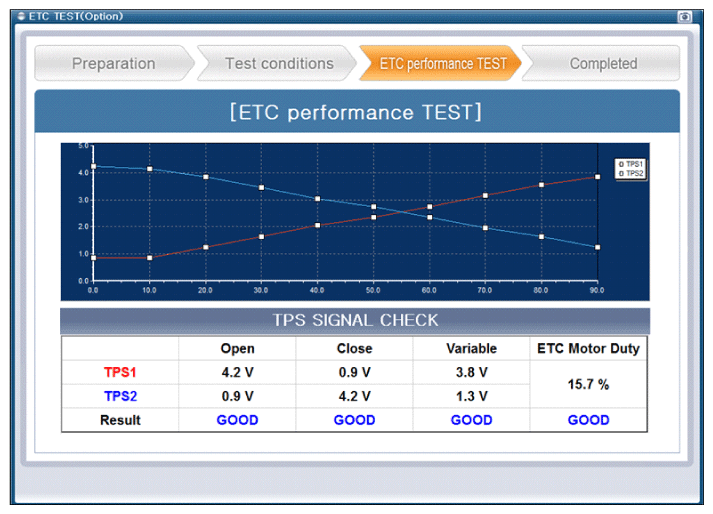

    Fig 4: Scantool Display - ETC Performance Test
    G12274133Courtesy of KIA MOTORS AMERICA, INC.

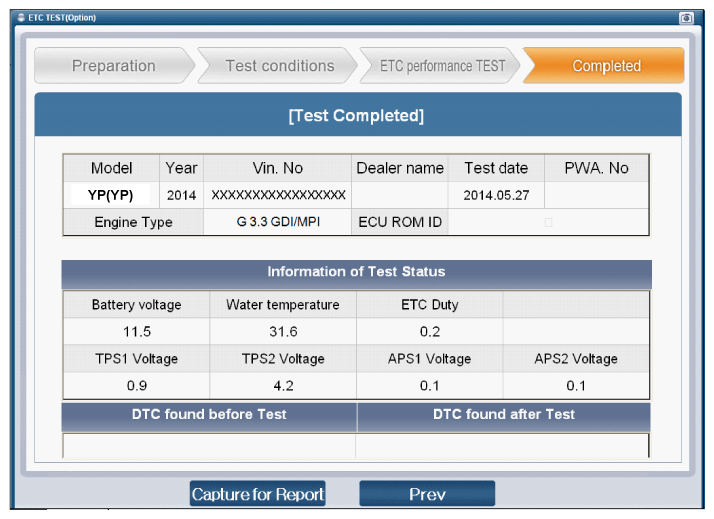

    Fig 5: Scantool Display - ETC Test Completed
    G12274134Courtesy of KIA MOTORS AMERICA, INC.
  4. When the "ETC TEST(Option)" has been finished perfectly, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
