Component Inspection: Notes

■ Perform OCV Actuation Test

1. Connect GDS to Data Link Connector (DLC).
2. IG "ON" & ENG "OFF"
3. Perform "Actuation Test" for "Intake Oil Control Valve".

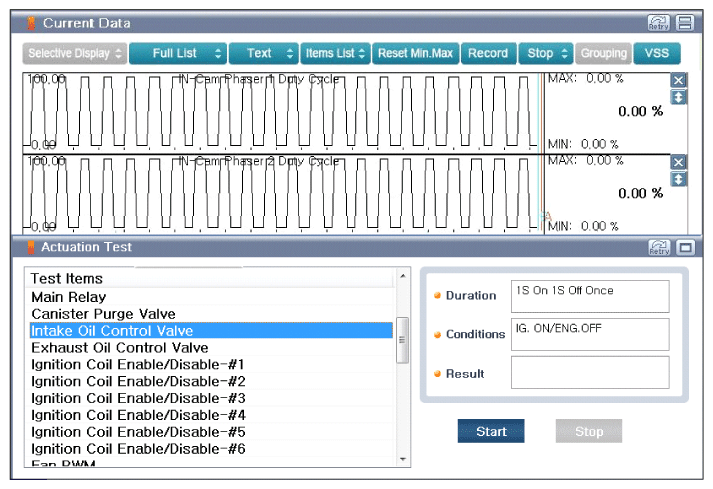

   Fig 1: Screen Display - Intake Oil Control Valve Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.
4. Does the OCV operate properly? (Check variation)

   YES

   • Go to "Verification Of VEHICLE REPAIR " procedure.

   NO

   • Go to "INSPECT OCV " procedure.
