Variant Coding

  1. Ignition "ON".
  2. Perform "Vehicle S/W Management" → "Variant Coding" with KDS/GDS.
  3. Select the "Variant Coding" and set the proper option.
  4. Check for DTCs in the system.

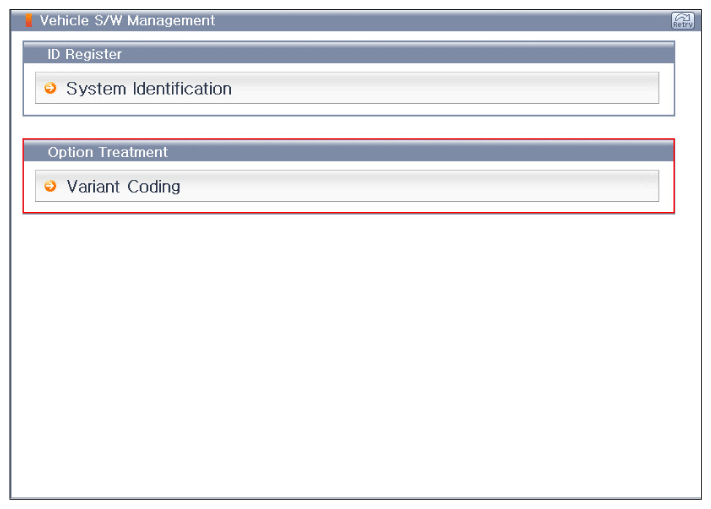

Fig 1: Screen Display - Variant Coding Procedure On Vehicle S/W Management (1 Of 4)
G12269248Courtesy of KIA MOTORS AMERICA, INC.

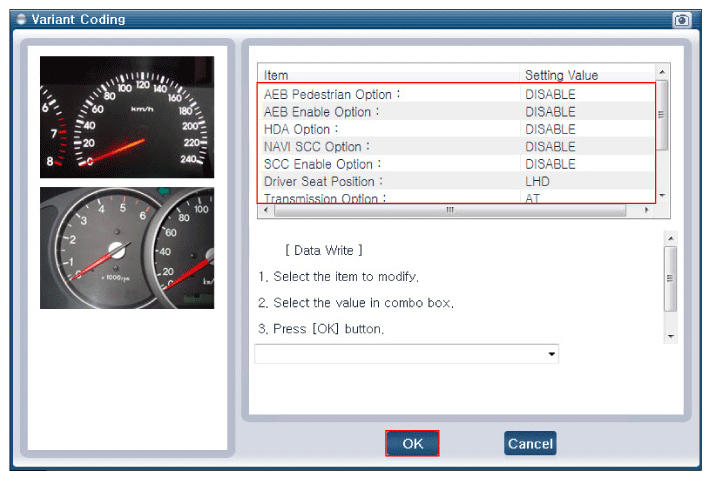

Fig 2: Screen Display - Variant Coding Procedure On Vehicle S/W Management (2 Of 4)
G12269249Courtesy of KIA MOTORS AMERICA, INC.

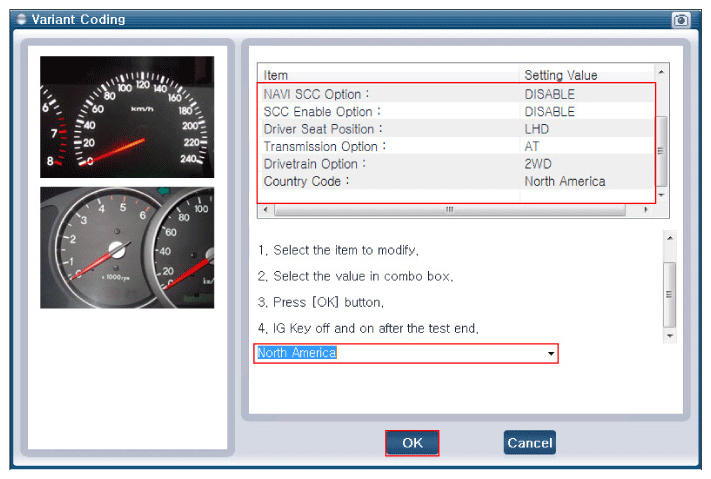

Fig 3: Screen Display - Variant Coding Procedure On Vehicle S/W Management (3 Of 4)
G12269250Courtesy of KIA MOTORS AMERICA, INC.

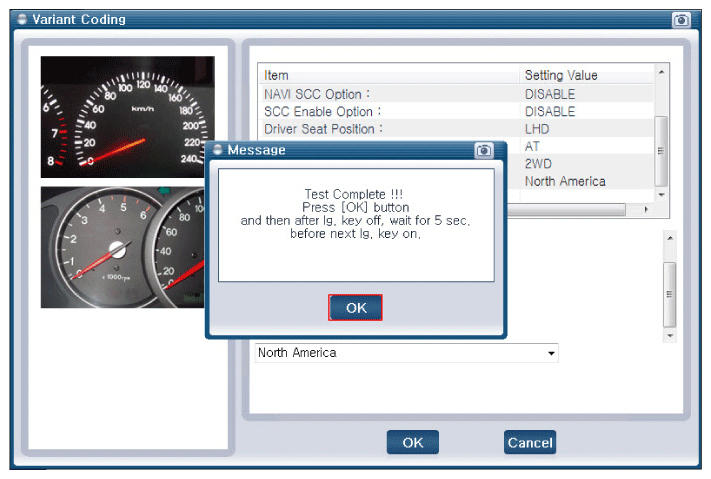

Fig 4: Screen Display - Variant Coding Procedure On Vehicle S/W Management (4 Of 4)
G12269251Courtesy of KIA MOTORS AMERICA, INC.
