Signal Waveform & Data

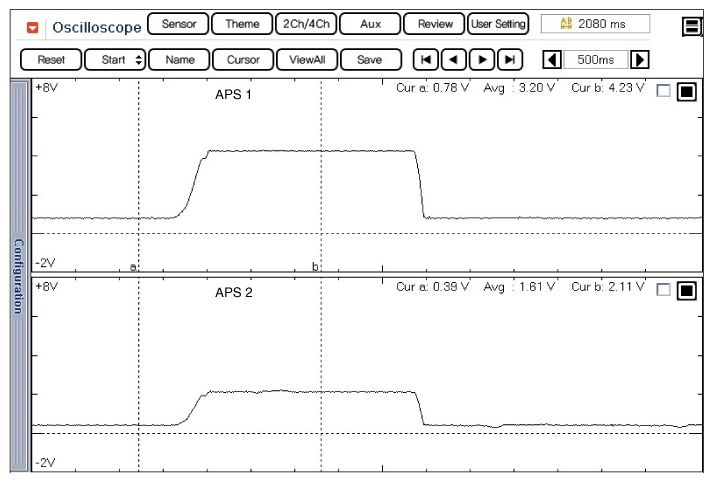

Fig 1: Screen Display - Normal Waveform Of APS1 & APS2 With Acceleration
G11847837Courtesy of KIA MOTORS AMERICA, INC.

Signal waveform of APS 1 & 2 shows that APS 2 increases voltage just half of APS 1 voltage increase when accelerating.
