Control Circuit Inspection

■ Check Open or Short in FPR Circuit

1. IG KEY "OFF".
2. Disconnect FPR connector.
3. IG KEY "ON" & ENG "OFF".
4. Measure the voltage between FPR open, FPR close terminal of FPR harness connector and chassis ground.

   Specification:

   FPR open Terminal: Approx. 0 ~ 0.6V

   FPR close Terminal: Approx. 0.6V

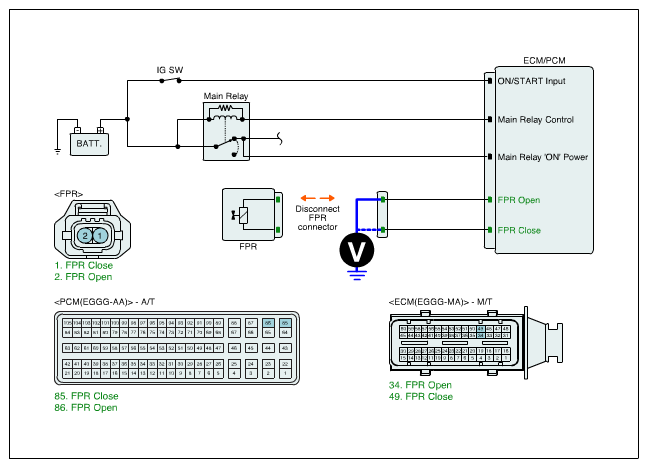

   Fig 1: Measuring Voltage Between FPR Close Terminal Of FPR Harness Connector And Chassis Ground

   Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specification?

   YES

   • Go to "COMPONENT INSPECTION " procedure.

   NO

   • Check for Open or Short in FPR circuit. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
