Circuit Diagram

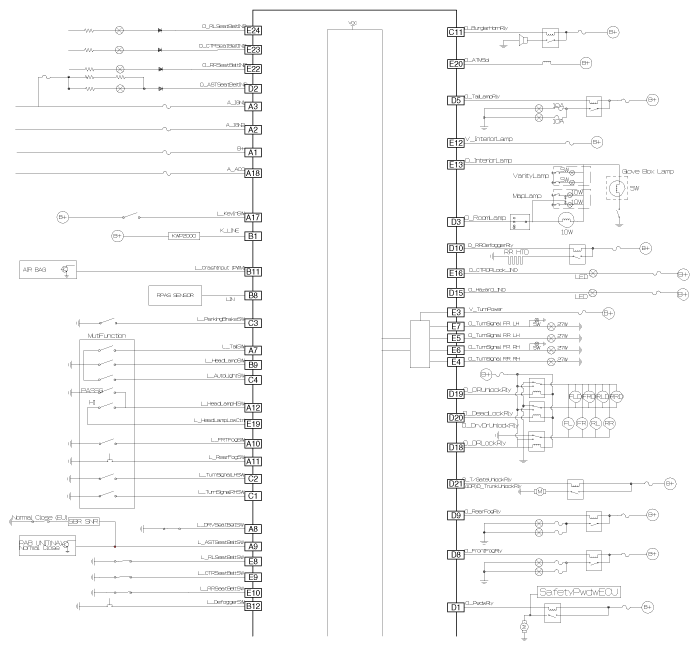

Fig 1: Body Control Module Circuit (1 Of 2)

G11849534

Courtesy of KIA MOTORS AMERICA, INC.

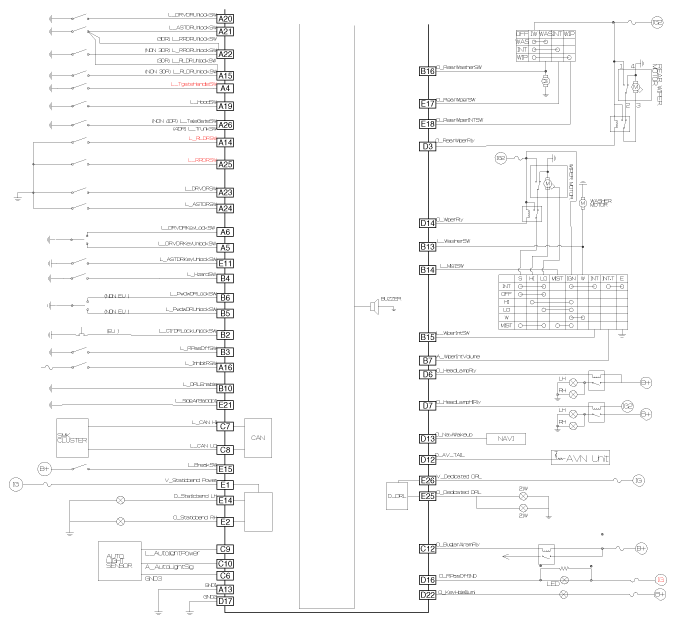

Fig 2: Body Control Module Circuit (2 Of 2)

G11849535

Courtesy of KIA MOTORS AMERICA, INC.
