[Bank 1/Exhaust]

Fig 1: Camshaft Position Sensor (Bank 1/Exhaust)

Courtesy of KIA MOTORS AMERICA, INC.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the air cleaner and intake hose.
(Refer to Engine Mechanical System - "AIR CLEANER ")

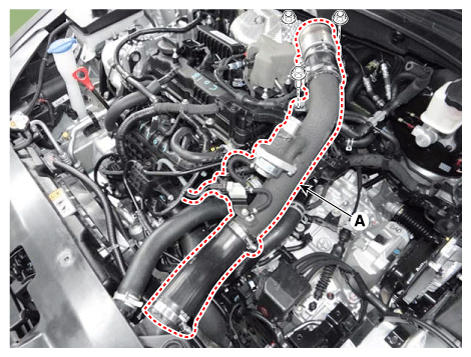

Remove the intercooler inlet pipe & hose assembly (A).
Hose clamp bolt:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft)

Pipe mounting Bolt:

14.7 - 19.5 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb.ft)

Fig 2: Removing Intercooler Inlet Pipe & Hose Assembly
Courtesy of KIA MOTORS AMERICA, INC.

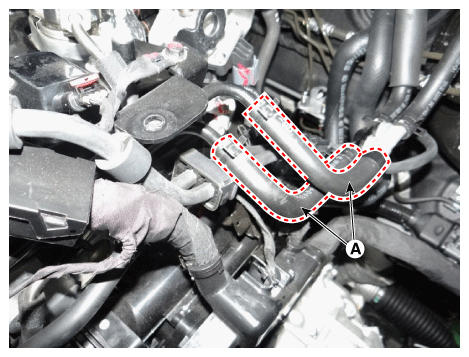

Disconnect the vacuum hoses (A).

Fig 3: Disconnecting Vacuum Hoses
Courtesy of KIA MOTORS AMERICA, INC.
Remove the low pressure fuel line mounting nut (A).

Fig 4: Removing Low Pressure Fuel Line Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.

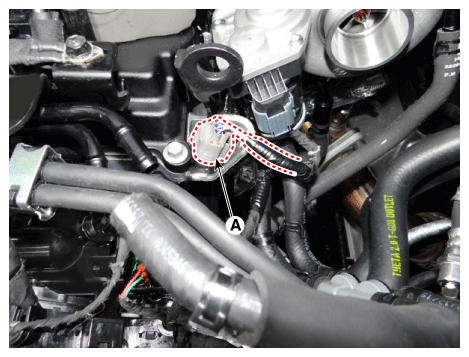

Disconnect the camshaft position sensor connector (A).

Fig 5: Disconnecting Camshaft Position Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

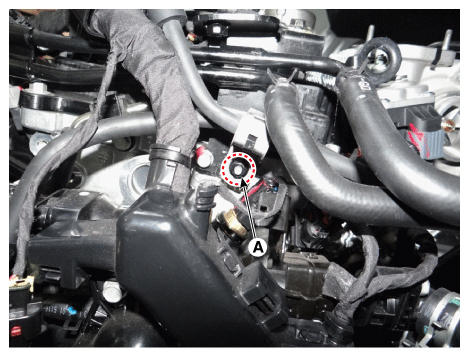

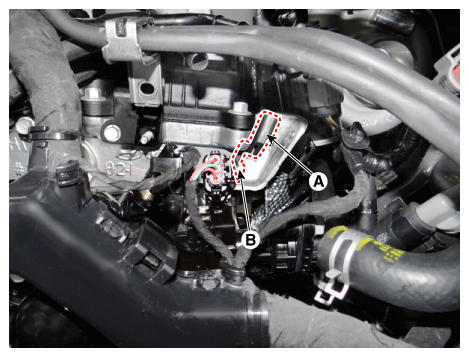

Remove the camshaft position sensor (A) after loosening the mounting bolt (B).

Fig 6: Removing Camshaft Position Sensor Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

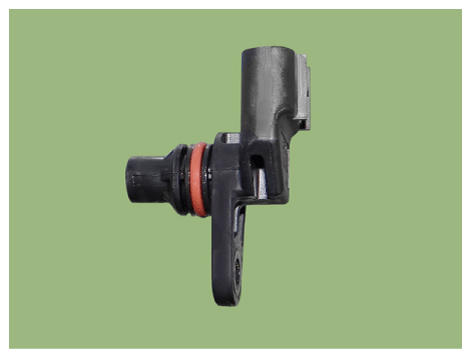

Fig 7: Camshaft Position Sensor
Courtesy of KIA MOTORS AMERICA, INC.
