Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the installation bolt (B), and then remove the valve from the engine.

    [Bank 1/Exhaust]

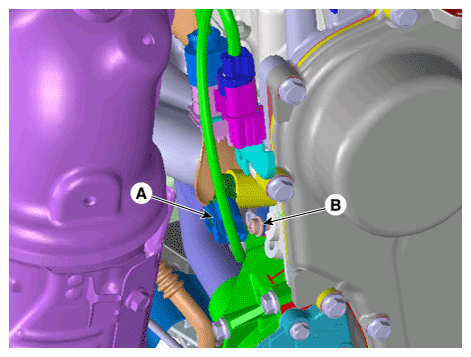

    Fig 1: Disconnecting CVVT Oil Control Valve Connector (Bank 1/Exhaust)
    G12145786Courtesy of KIA MOTORS AMERICA, INC.
