Engine Mounting Bracket

  1. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Install the jack to the edge of upper oil pan to support the engine.
    NOTE: Put a rubber block between the jack and oil pan to avoid damaging the oil pan.

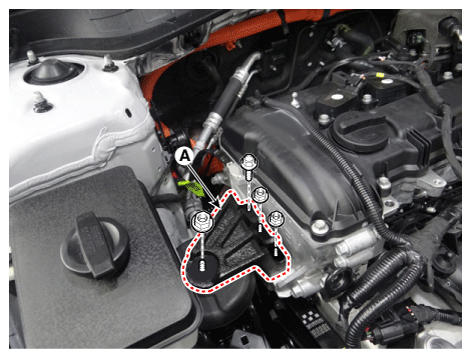

  3. Remove the engine mounting support bracket (A).

    Tightening Torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

    G12352937Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Always use new nuts.
  4. Remove the reservoir tank.

    (Refer to Cooling System - "RESERVOIR TANK ")

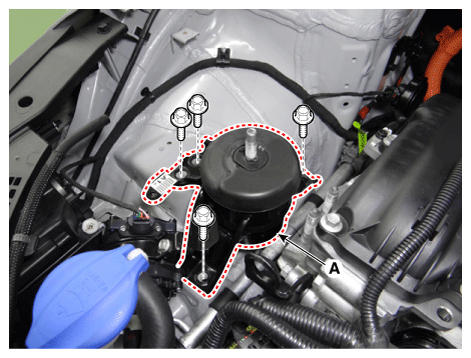

  5. Remove the engine mounting bracket (A).

    Tightening Torque:

    68.6 - 88.3 N.m (7.0 - 9.0 kgf.m, 50.6 - 65.1 lb.ft)

    G12352938Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
