Removal And Installation

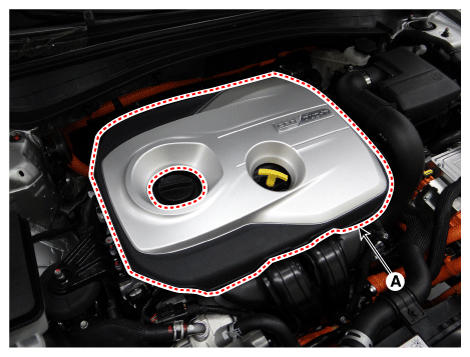

  1. Remove the engine cover (A).
    G12352933Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Lift up the lower end of engine cover, then left and right alternately.
    • When installing, confirm that the mounting rubber insulators has been installed.
  2. Install in the reverse order of removal.
