Hybrid Drive Motor

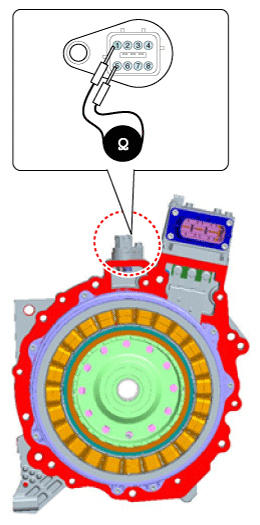

  1. Inspect the resolver sensor resistance.
    Item Pin Specification Remarks
    Resistance (Resolver sensor) 1 - 5 10.5 - 12.9 Ω At room temperature 68°F (20° C)
    2 - 6 28.8 - 35.2 Ω
    3 - 7 24.3 - 29.7 Ω
    G12353679Courtesy of KIA MOTORS AMERICA, INC.
  2. If the resolver sensor need to be replaced, hybrid drive motor assembly should be replaced.

    (Refer to Hybrid Motor Assembly - "HYBRID DRIVE MOTOR ASSEMBLY ")
