Hybrid Power Control Unit (HPCU) Tray

  1. Remove the hybrid power control unit.

    (Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT (HPCU) ")

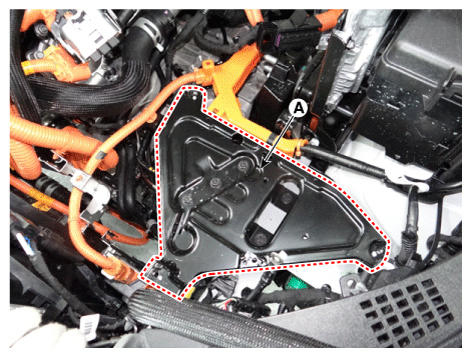

  2. Remove the hybrid power control unit tray (A) after loosening the mounting bolts.

    Hybrid Power Control Unit (HPCU) Tray Mounting Bolt:

    19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

G12353253Courtesy of KIA MOTORS AMERICA, INC.
