Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the auxiliary 12V battery negative (-) terminal.
  2. Remove the Engine room under cover. (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

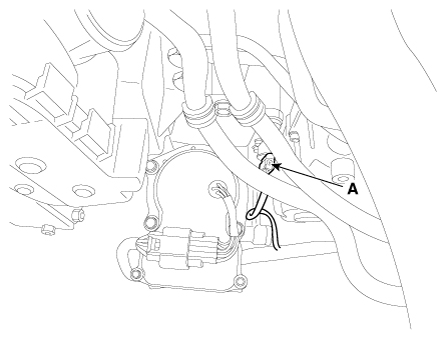

  3. Disconnect the sensor connector (A).
    G12353263Courtesy of KIA MOTORS AMERICA, INC.

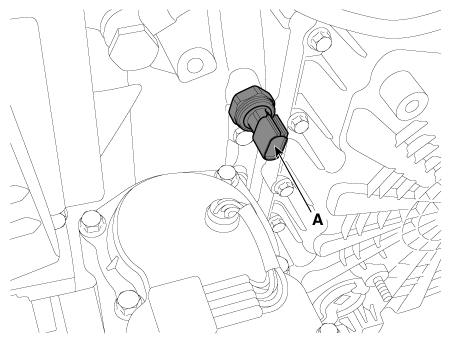

  4. Remove the clutch pressure sensor (A).
G12353264Courtesy of KIA MOTORS AMERICA, INC.
