Repair Procedures: Inspection

  1. Connect the KDS to the Data Link Connector (DLC).
  2. Turn the ignition switch ON.
  3. Check the KDS service data of the sensor.
    • EV Mode (Engine clutch not operating)

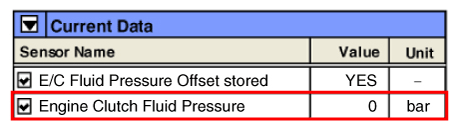

      Clutch Oil Pressure:  approx. 0 bar (0 kpa, 0 kgf/cm2 , 0 psi)

    G12353266Courtesy of KIA MOTORS AMERICA, INC.
    • HEV Mode (Engine clutch operating)

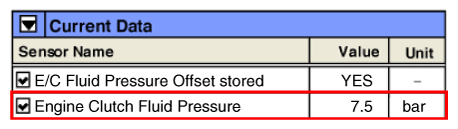

      Clutch Oil Pressure:  above 0 bar (0 kpa, 0 kgf/cm2 , 0 psi)

    G12353267Courtesy of KIA MOTORS AMERICA, INC.
