Description And Operation: Description

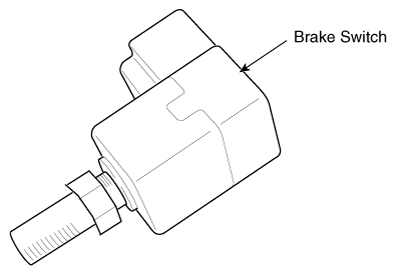

The Brake Switch is installed on the brake pedal and linked with the HCU and stop lamp. It sensors the status of the brake pedal (Release, Push) and transmits the signal to the HCU.

Courtesy of KIA MOTORS AMERICA, INC.
