Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the right front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Separate the right floor carpet (A).

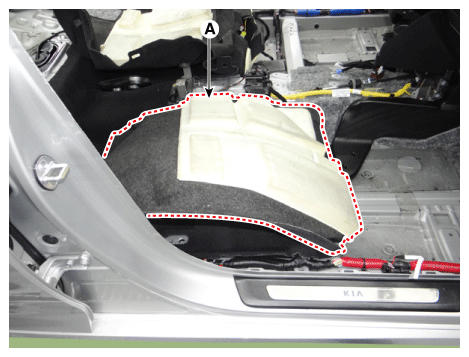

    Fig 1: Separating Right Floor Carpet
    G12144831Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the SVM unit (A) after loosening the mounting the nuts.

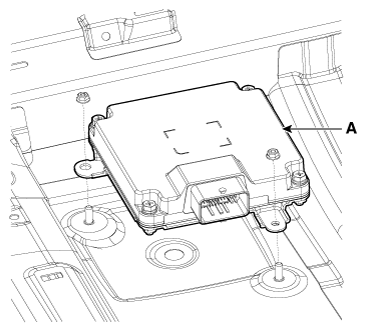

Fig 2: Removing SVM Unit Mounting Nuts
G12144832Courtesy of KIA MOTORS AMERICA, INC.
