Section 41 (Lighting System (Except HEV))
>>
Rheostat
>>
Components and Components Location
>>
Components
Components and Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

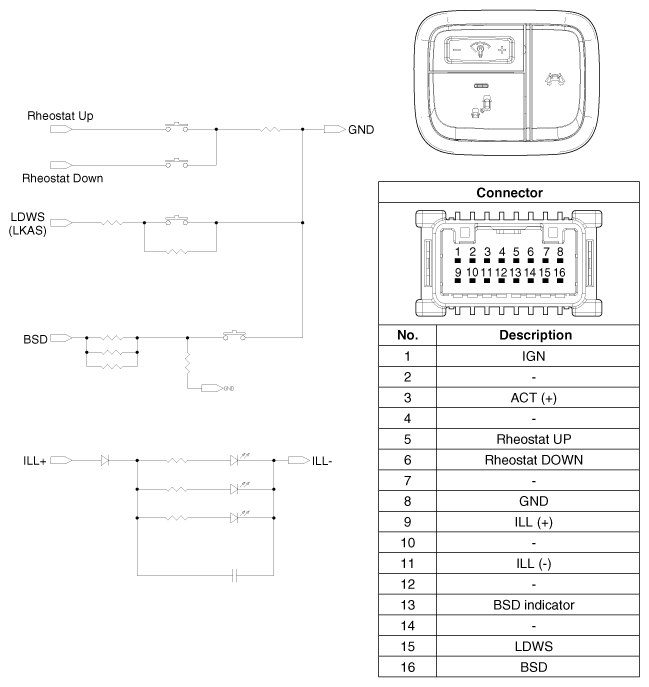

Fig 1: Rheostat Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
