Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

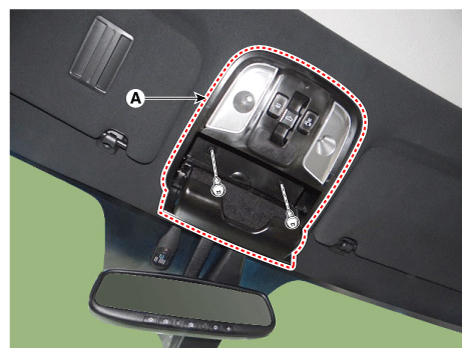

  2. Remove the two mounting screws.

    Then, remove the overhead console (A).

    Fig 1: Removing Overhead Console
    G12143393Courtesy of KIA MOTORS AMERICA, INC.

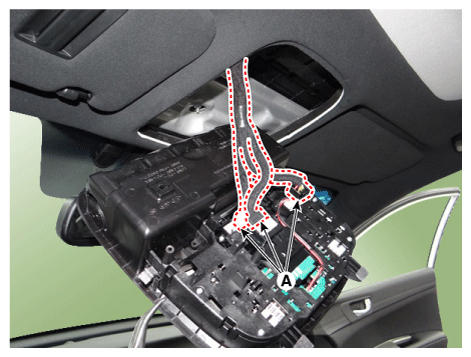

  3. Remove the overhead console after disconnecting the connectors (A).
Fig 2: Removing Overhead Console Connectors
G12143394Courtesy of KIA MOTORS AMERICA, INC.
