Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning to work.
  2. Remove the glove box assembly.

    (Refer to Body (Interior and Exterior) - "GLOVE BOX HOUSING ")

  3. Disconnect the passenger airbag connector (A) and then remove the PAB mounting bolts (B).

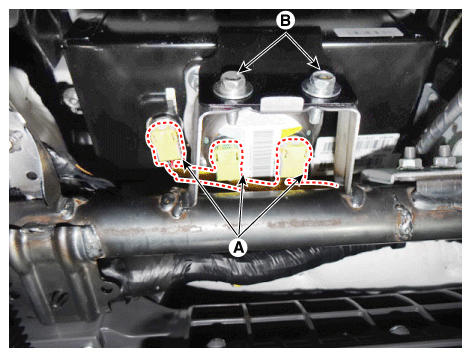

    Fig 1: Locating Passenger Airbag Connector And PAB Mounting Bolts
    G12142013Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the main crash pad.

    (Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

    NOTE: If the PAB has been deployed, replace the damaged crash pad.
