Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning to work.
  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

  3. Loosen the nuts (A) and then disconnect the connector (B).

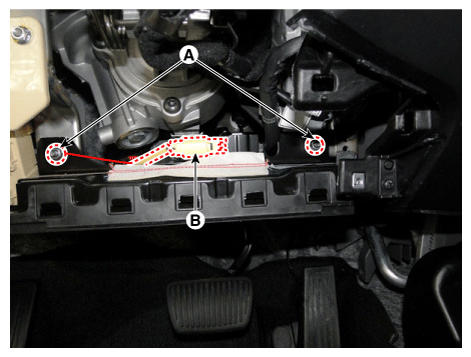

Fig 1: Locating Connector And Nuts
G12142021Courtesy of KIA MOTORS AMERICA, INC.
