Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater & A/C control unit.

    (Refer to Heating, Ventilation and Air Conditioning - "HEATER & A/C CONTROL UNIT ")

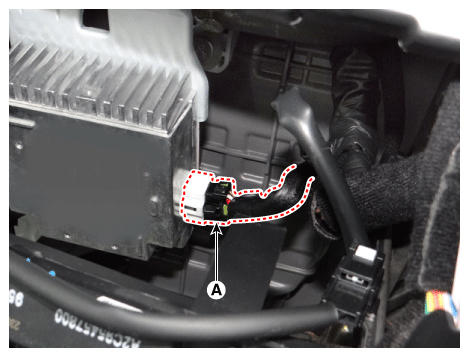

  3. Disconnect the VESS unit connector (A).
    G12351958Courtesy of KIA MOTORS AMERICA, INC.

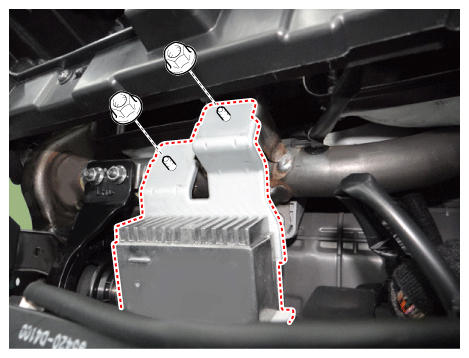

  4. Remove the VESS unit (A) after loosening the nuts.
G12351959Courtesy of KIA MOTORS AMERICA, INC.
