Virtual Engine Sound System Unit
>>
Components And Components Location
>>
Component Location
Component Location

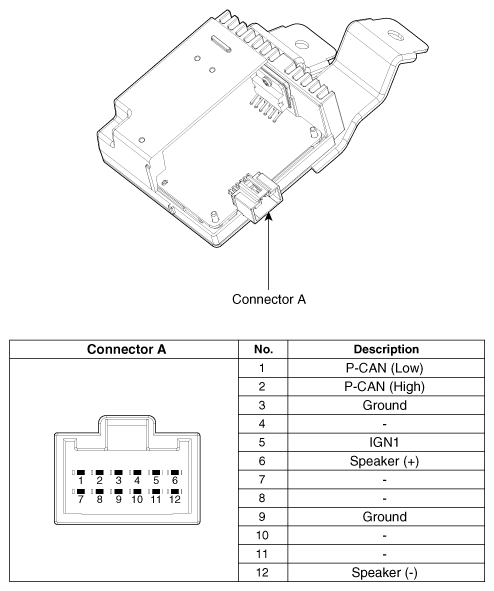

Fig 1: Identifying VESS With Connector End View & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
