Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the right front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

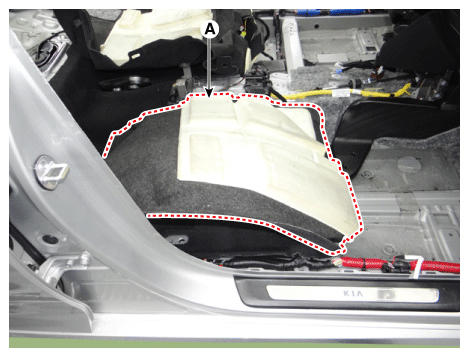

  3. Separate the right floor carpet (A).
    G12351940Courtesy of KIA MOTORS AMERICA, INC.

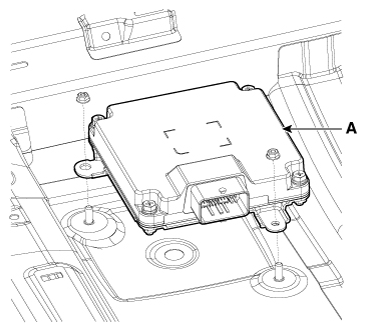

  4. Remove the SVM unit (A) after loosening the mounting the nuts.
G12351941Courtesy of KIA MOTORS AMERICA, INC.
