Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console upper cover.

    (Refer to body - "FLOOR CONSOLE ASSEMBLY ")

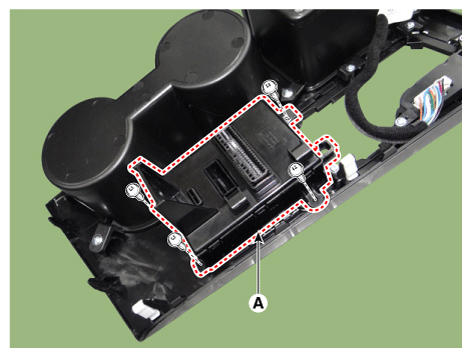

  3. Remove the SVM switch (A) after loosening the screws.
G12351951Courtesy of KIA MOTORS AMERICA, INC.
