Circuit Diagram

G12347097Courtesy of KIA MOTORS AMERICA, INC.

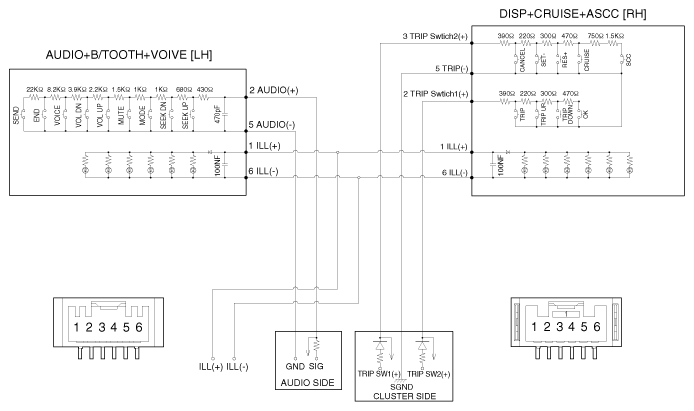

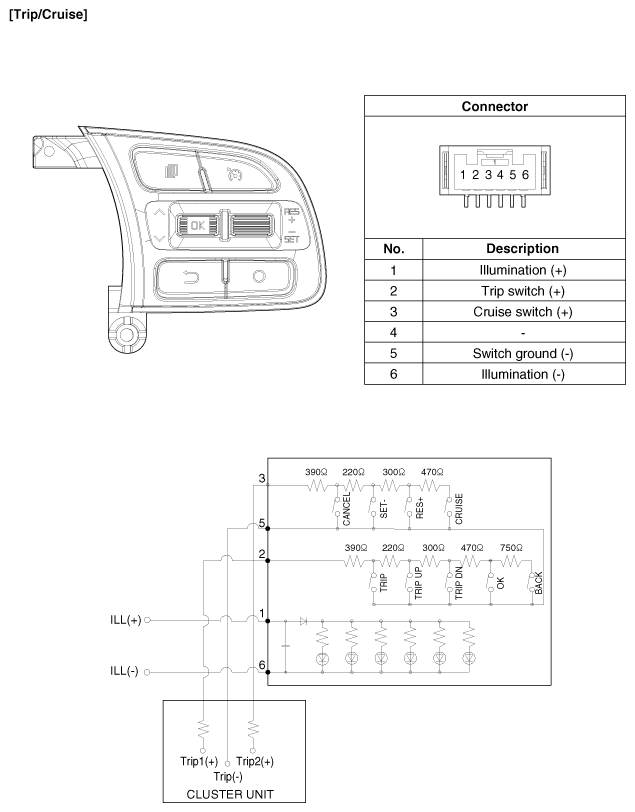

Fig 1: Trip/Cruise Switch With Connector End View & Terminal Description
G12347098Courtesy of KIA MOTORS AMERICA, INC.

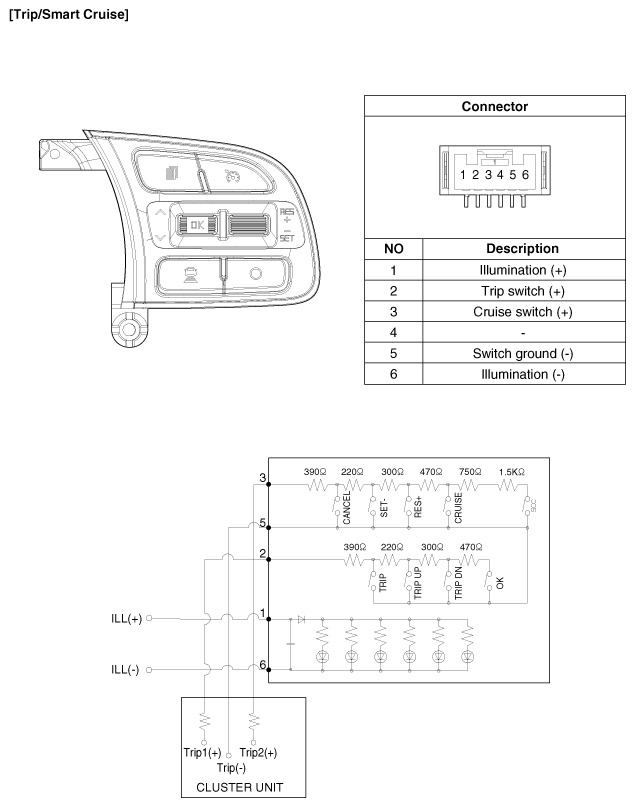

Fig 2: Trip/Smart Cruise Switch With Connector End View & Terminal Description
G12347099Courtesy of KIA MOTORS AMERICA, INC.

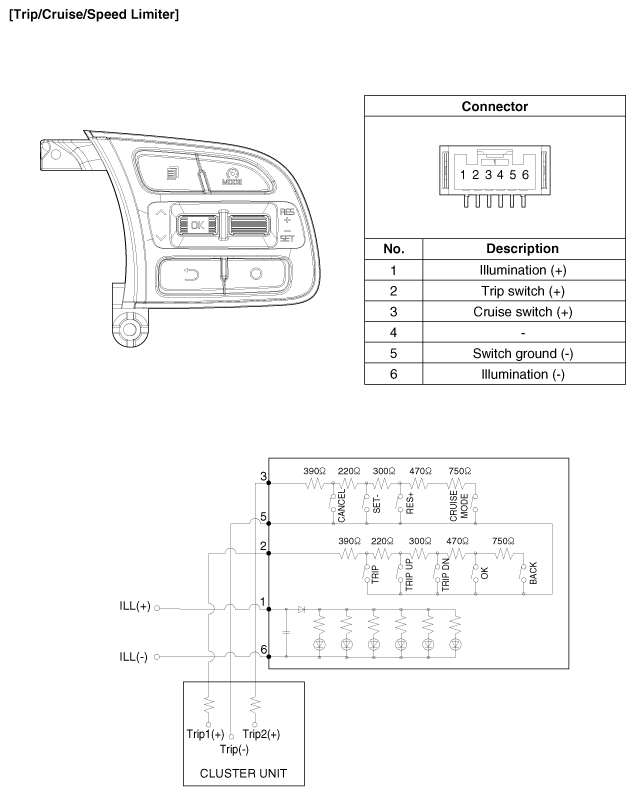

Fig 3: Trip/Cruise/Speed Limiter Switch With Connector End View & Terminal Description
G12347100Courtesy of KIA MOTORS AMERICA, INC.

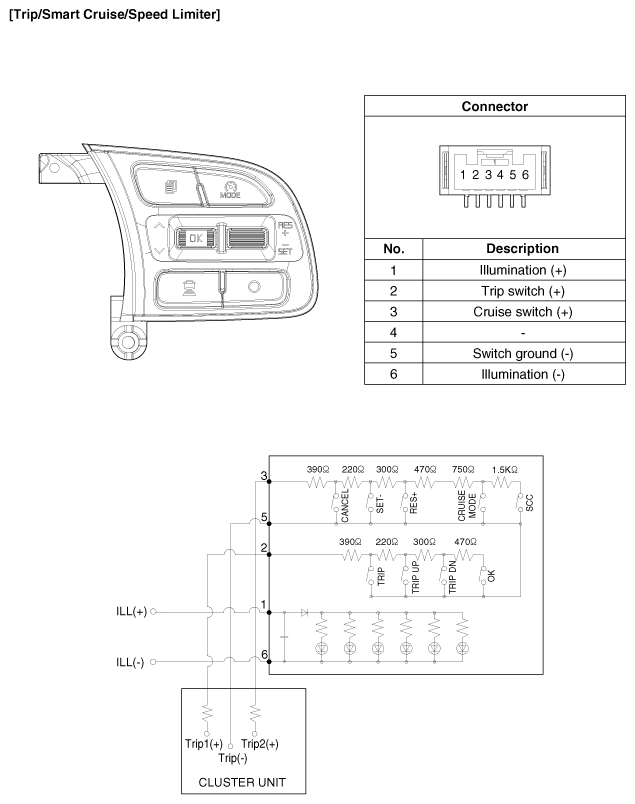

Fig 4: Trip/Smart Cruise/Speed Limiter Switch With Connector End View & Terminal Description
G12347101Courtesy of KIA MOTORS AMERICA, INC.
