Components And Components Location: Components: Notes

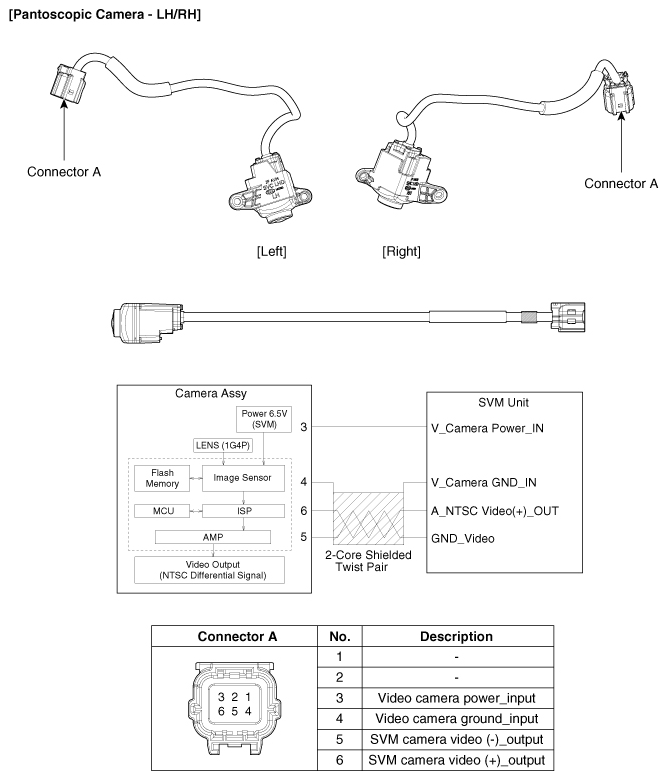

Fig 1: Pantoscopic Camera Connector End View And Terminal Function (LH/RH)

G12351942

Courtesy of KIA MOTORS AMERICA, INC.
