Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Check that the shift lever and manual control lever are placed in the "N" position.
    • Install the shift cable after checking the direction of projection to prevent wrong assembly.

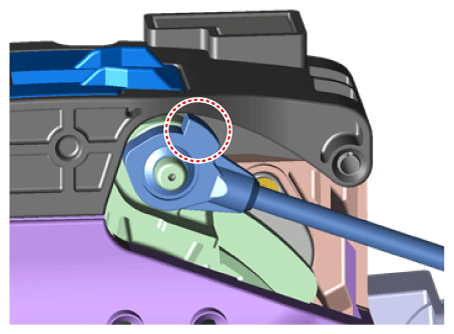

      Fig 1: Shift Cable Installation Position
      G12142665Courtesy of KIA MOTORS AMERICA, INC.
    • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

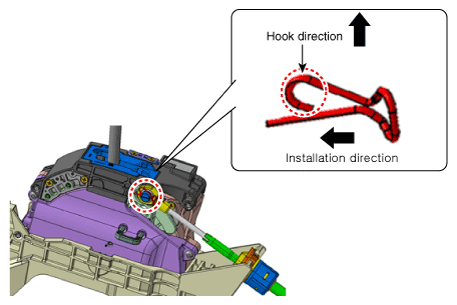

      Fig 2: Installing Snap Pin With Hook
      G12142666Courtesy of KIA MOTORS AMERICA, INC.
