Components and Components Location: Components

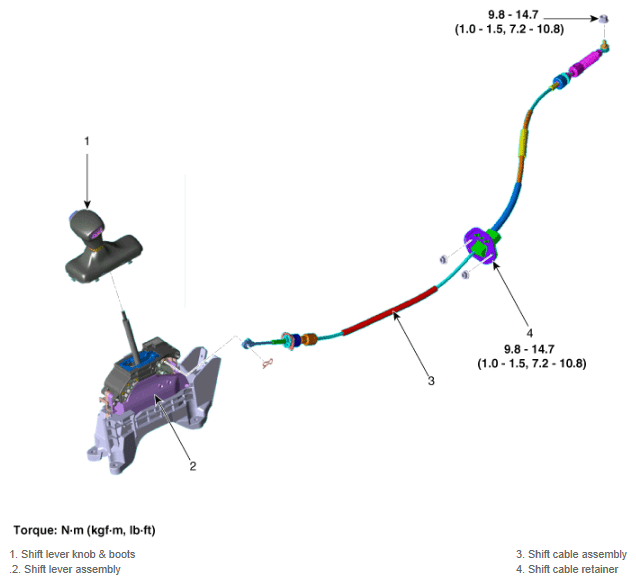

Fig 1: Shift Cable Components With Torque Specification

G12142667

Courtesy of KIA MOTORS AMERICA, INC.
