Control System Logic

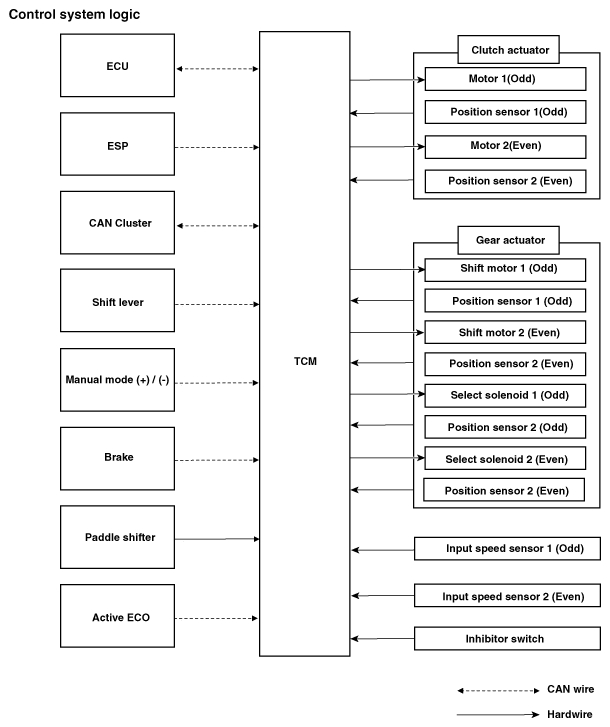

Fig 1: Dual Clutch Transmission Control System Diagram

G12142578

Courtesy of KIA MOTORS AMERICA, INC.
