Circuit Diagram

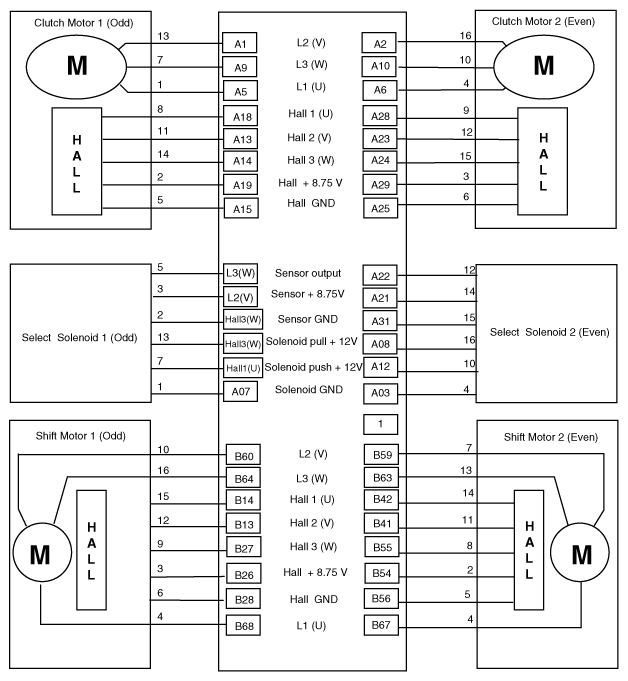

Fig 1: DCT Control Module Circuit (1 Of 2)

G12142580

Courtesy of KIA MOTORS AMERICA, INC.

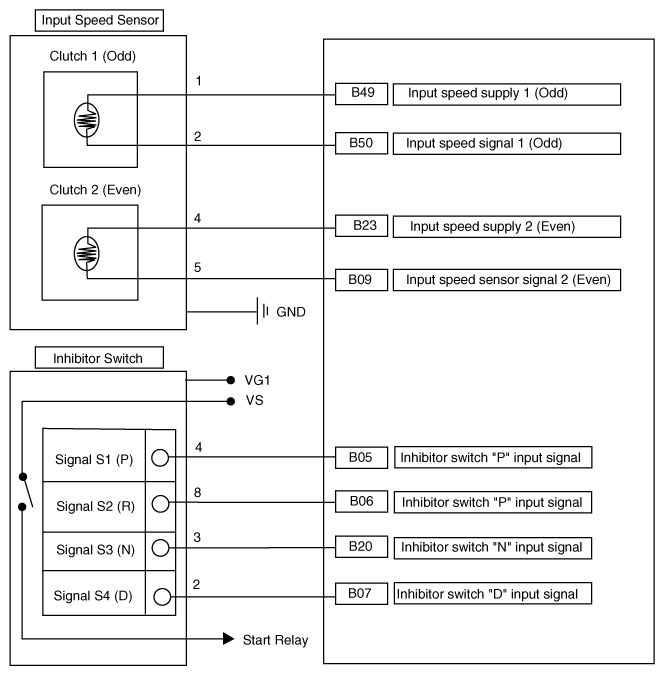

Fig 2: DCT Control Module Circuit (2 Of 2)

G12142581

Courtesy of KIA MOTORS AMERICA, INC.
