Repair Procedures: Removal

  1. Disconnect the battery negative (-) cable.
  2. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  3. Remove the wiring from the TCM bracket.

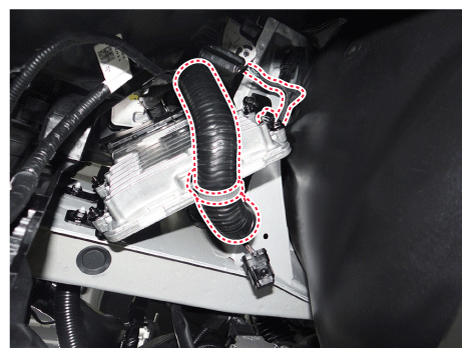

    Fig 1: TCM Bracket Wiring
    G12142582Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the TCM mounting nut (A).

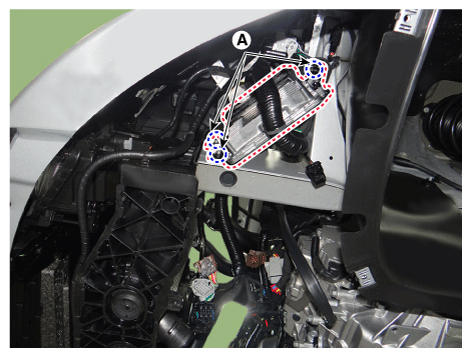

    Fig 2: Locating TCM Mounting Nuts
    G12142583Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the TCM connector.
  6. Remove the TCM from the bracket by loosening the nuts.

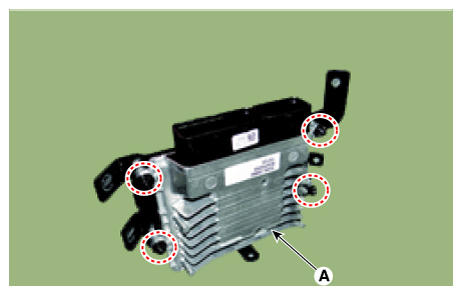

    Fig 3: Locating TCM With Nuts
    G12142584Courtesy of KIA MOTORS AMERICA, INC.
