Circuit Diagram

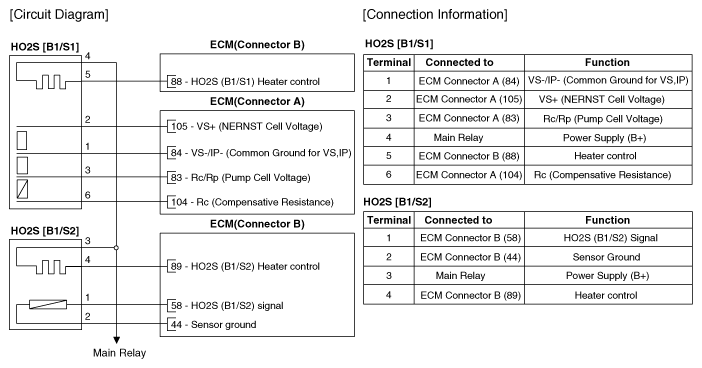

Fig 1: Heated Oxygen Sensor (HO2S) Circuit
G12146877Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

[Bank 1/Sensor 1]

Fig 2: Heated Oxygen Sensor (HO2S) Connector Terminals (Bank 1/Sensor 1)
G12146878Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Sensor 2]

Fig 3: Heated Oxygen Sensor (HO2S) Connector Terminals (Bank 1/Sensor 2)
G12146879Courtesy of KIA MOTORS AMERICA, INC.
