[Bank 1/Exhaust]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the engine hanger & camshaft position sensor protector after loosening the mounting bolt (B).
  4. Remove the mounting bolt (C), and then remove the sensor.

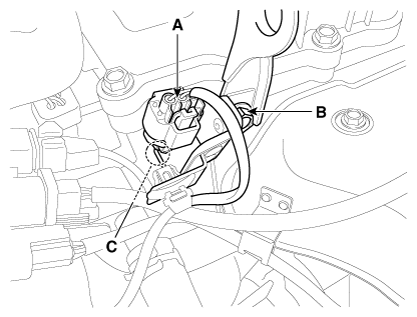

Fig 1: Disconnecting Camshaft Position Sensor Connector
G12146868Courtesy of KIA MOTORS AMERICA, INC.
NOTE: When installing the sensor connector be sure to keep the wiring clip position (A).

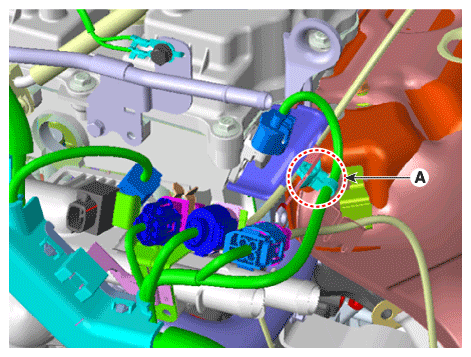

Fig 2: Installing Sensor Connector To Wiring Clip Position
G12146869Courtesy of KIA MOTORS AMERICA, INC.
