Anti-Lock Brake System/Electronic Stability Control Diagnosis (Except HEV)
>>
DTC C2228-08: CAN Signal Error TCM For SCC
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

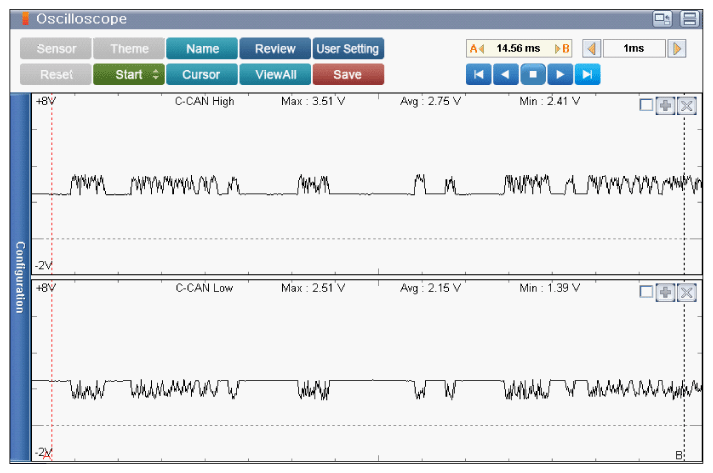

Fig 1: Screen Display - Normal C-CAN Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
