[Rear Power Window Module (RDM, IMS)]

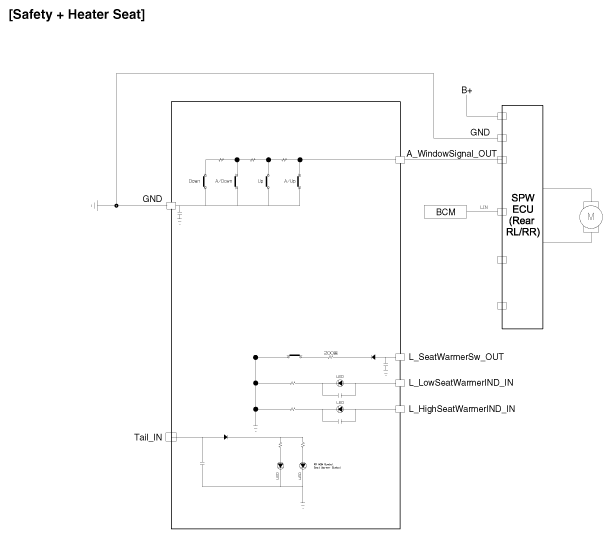

Fig 1: Rear Power Window Module (RDM Or IMS) Circuit - Safety + Heater Seat
G12144639Courtesy of KIA MOTORS AMERICA, INC.

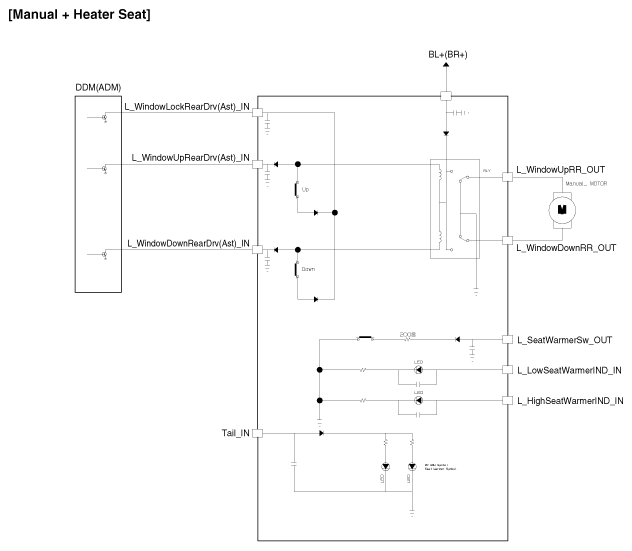

Fig 2: Rear Power Window Module (RDM Or IMS) Circuit - Manual + Heater Seat
G12144640Courtesy of KIA MOTORS AMERICA, INC.

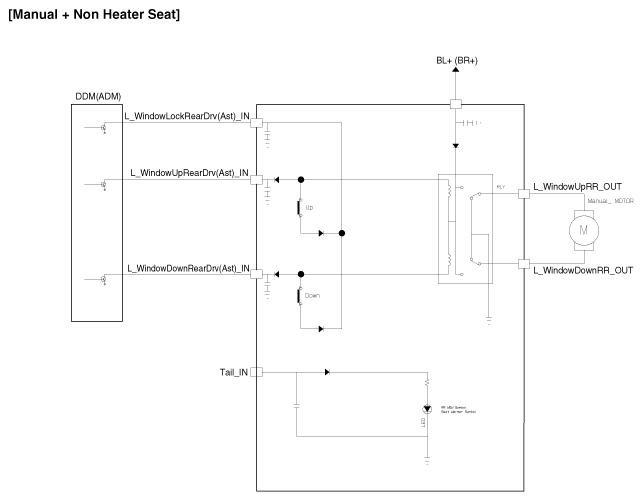

Fig 3: Rear Power Window Module (RDM Or IMS) Circuit - Manual + Non Heater Seat
G12144641Courtesy of KIA MOTORS AMERICA, INC.

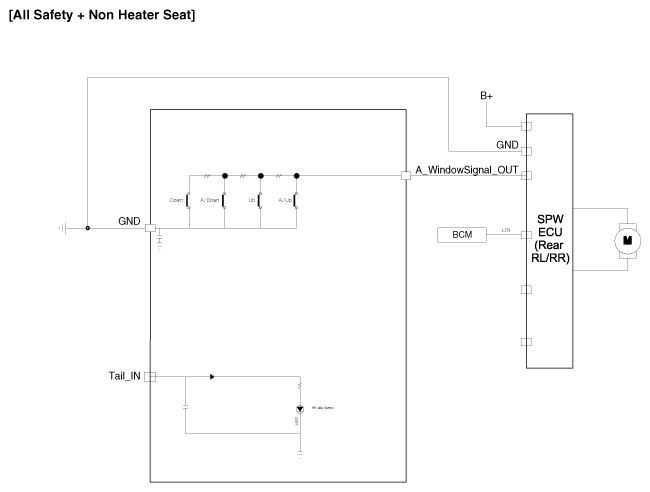

Fig 4: Rear Power Window Module (RDM Or IMS) Circuit - All Safety + Non Heater Seat
G12144642Courtesy of KIA MOTORS AMERICA, INC.
