[Assist Power Window Module (ADM, IMS)]

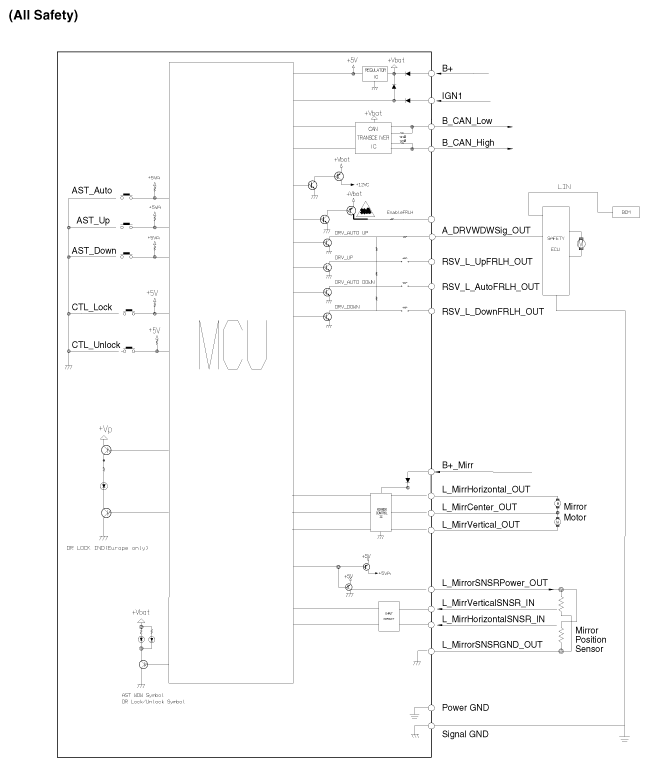

Fig 1: Assist Power Window Module (ADM And IMS) Circuit - All Safety
G12144631Courtesy of KIA MOTORS AMERICA, INC.

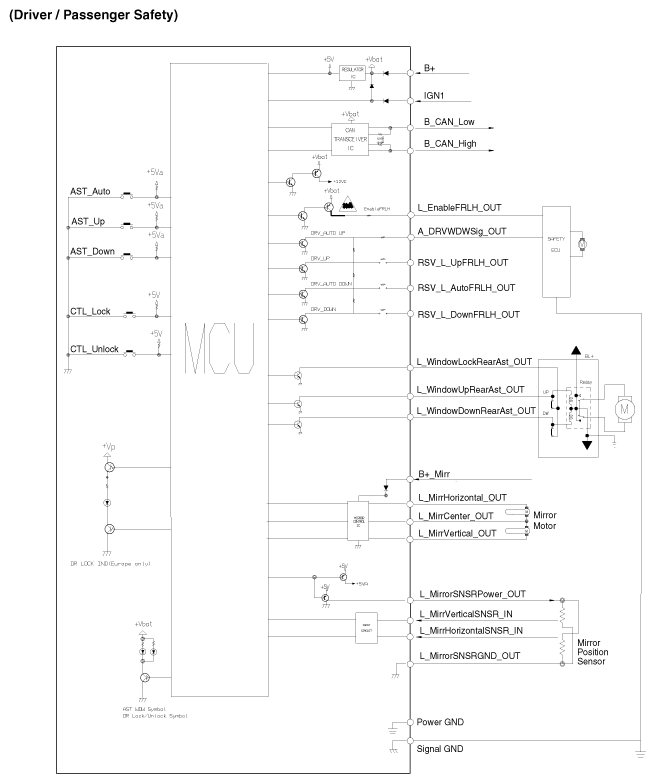

Fig 2: Assist Power Window Module (ADM And IMS) Circuit - Driver And Passenger Safety
G12144632Courtesy of KIA MOTORS AMERICA, INC.

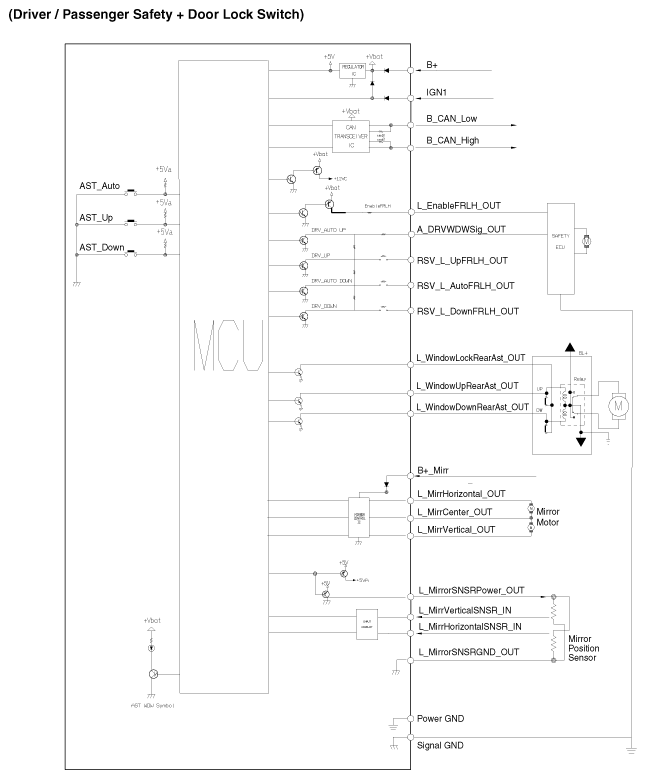

Fig 3: Assist Power Window Module (ADM And IMS) Circuit - Driver And Passenger Safety + Door Lock Switch
G12144633Courtesy of KIA MOTORS AMERICA, INC.
