Trunk Lock Module Inspection

  1. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

  2. Disconnect the connector from the actuator

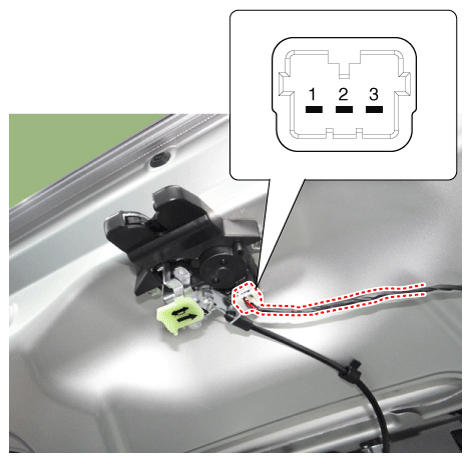

    Fig 1: Trunk Lock Module Actuator Connector Terminals
    G12143457Courtesy of KIA MOTORS AMERICA, INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
Fig 2: Trunk Lock Module Actuator Circuit Diagram
G12143458Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Trunk Lock Module Actuator Terminals Description Chart
G12143459Courtesy of KIA MOTORS AMERICA, INC.
