Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference
Ignition "ON" and Engine "OFF".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Actuation Test" of concerned component with GDS/KDS.	Fig 1

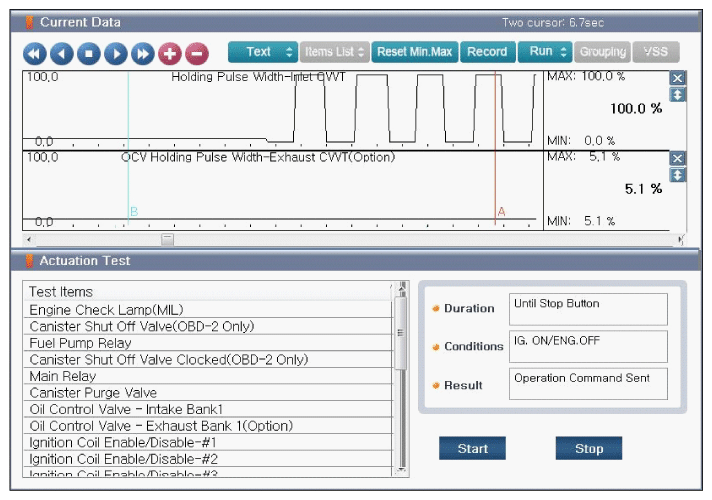

Fig 1: Screen Display - CVVT Holding Purse Current Data, Performing Oil Control Valve - Intake Bank 1 In Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.

Good	Go to "CVVT OIL CONTROL VALVE COIL RESISTANCE INSPECTION " procedure.
No Good	If no problems were found with the circuits or connectors, replace the CVVT OIL CONTROL VALVE (OCV) - Intake and go to "VERIFICATION OF REPAIR " procedure.
